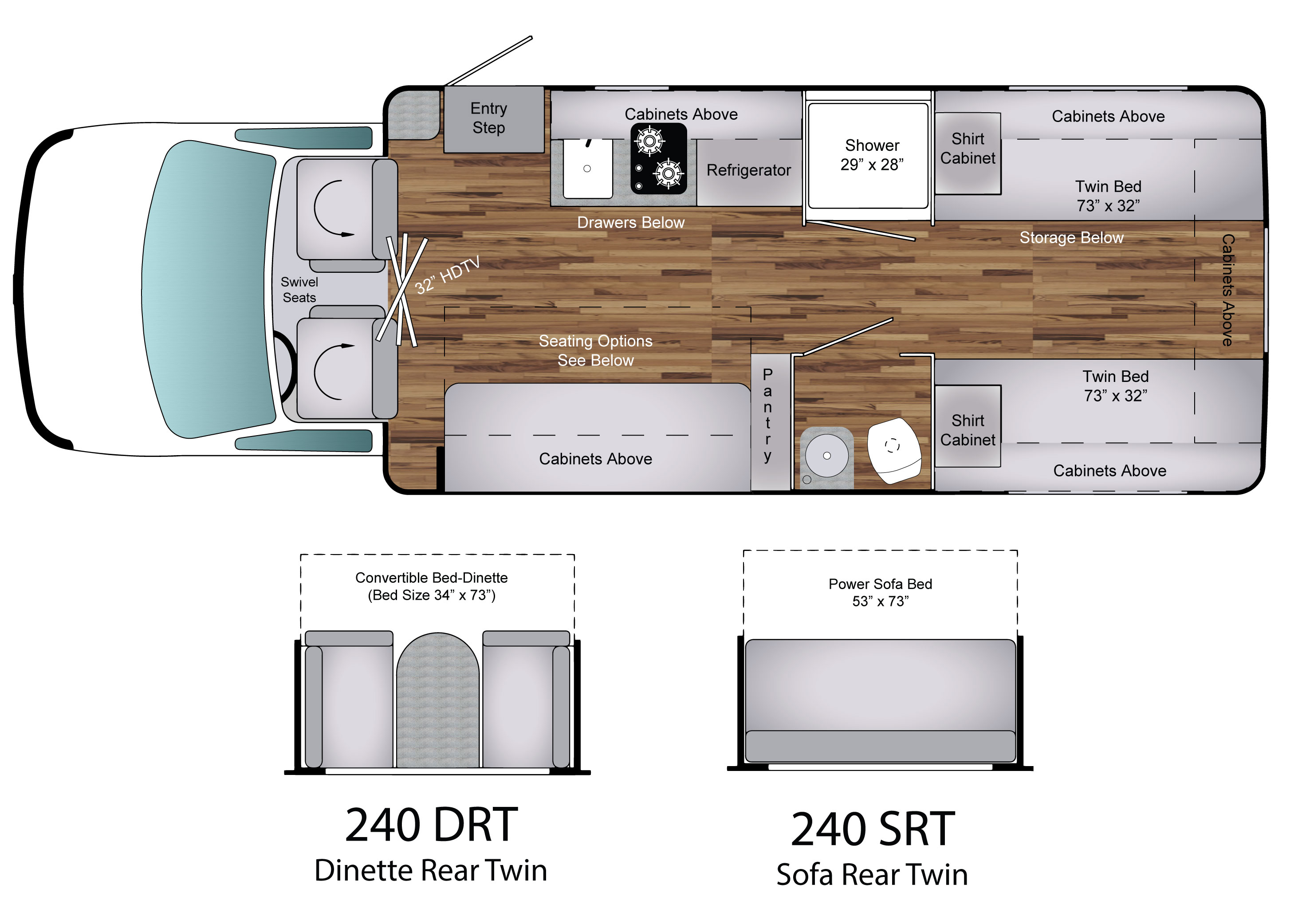

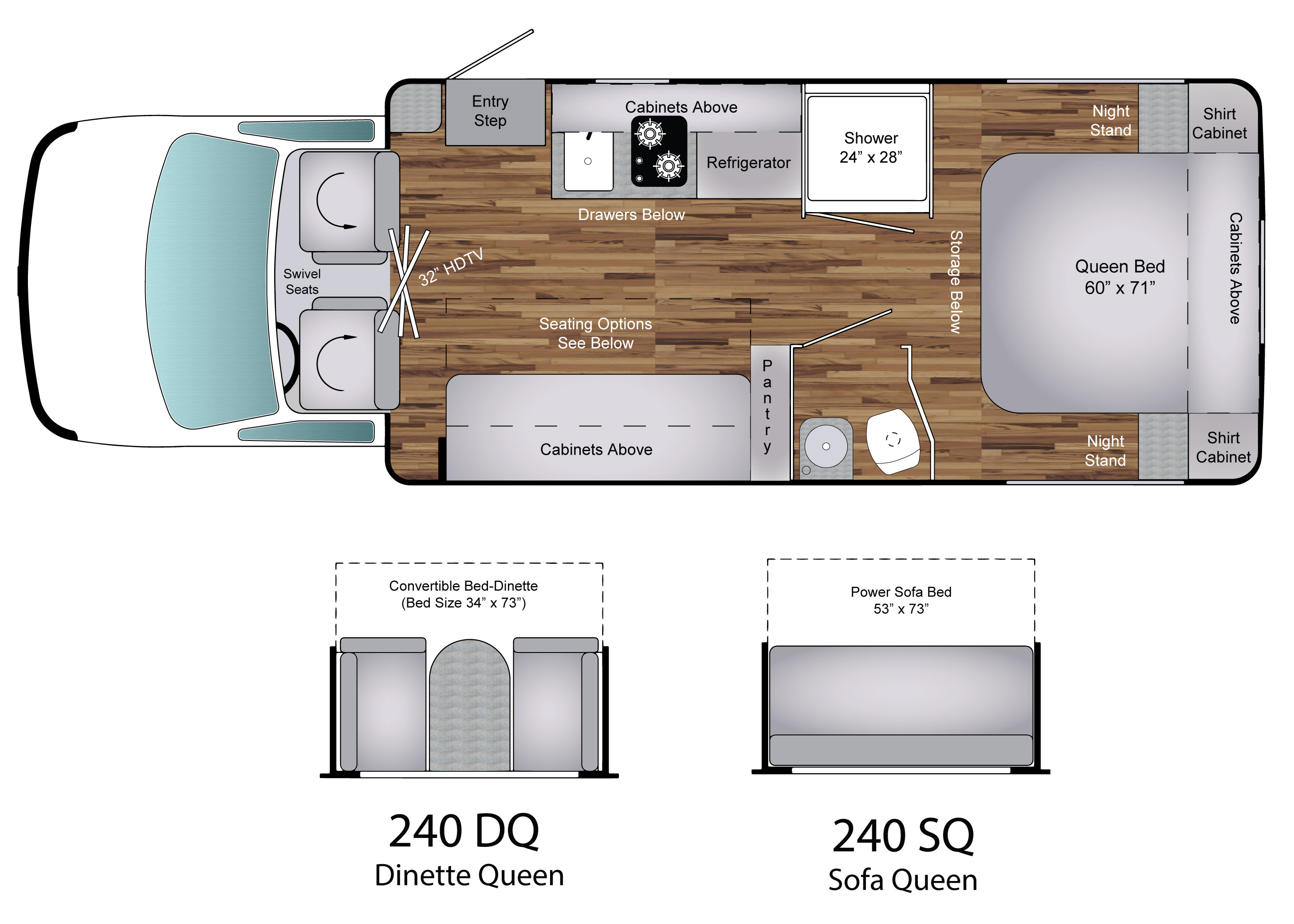

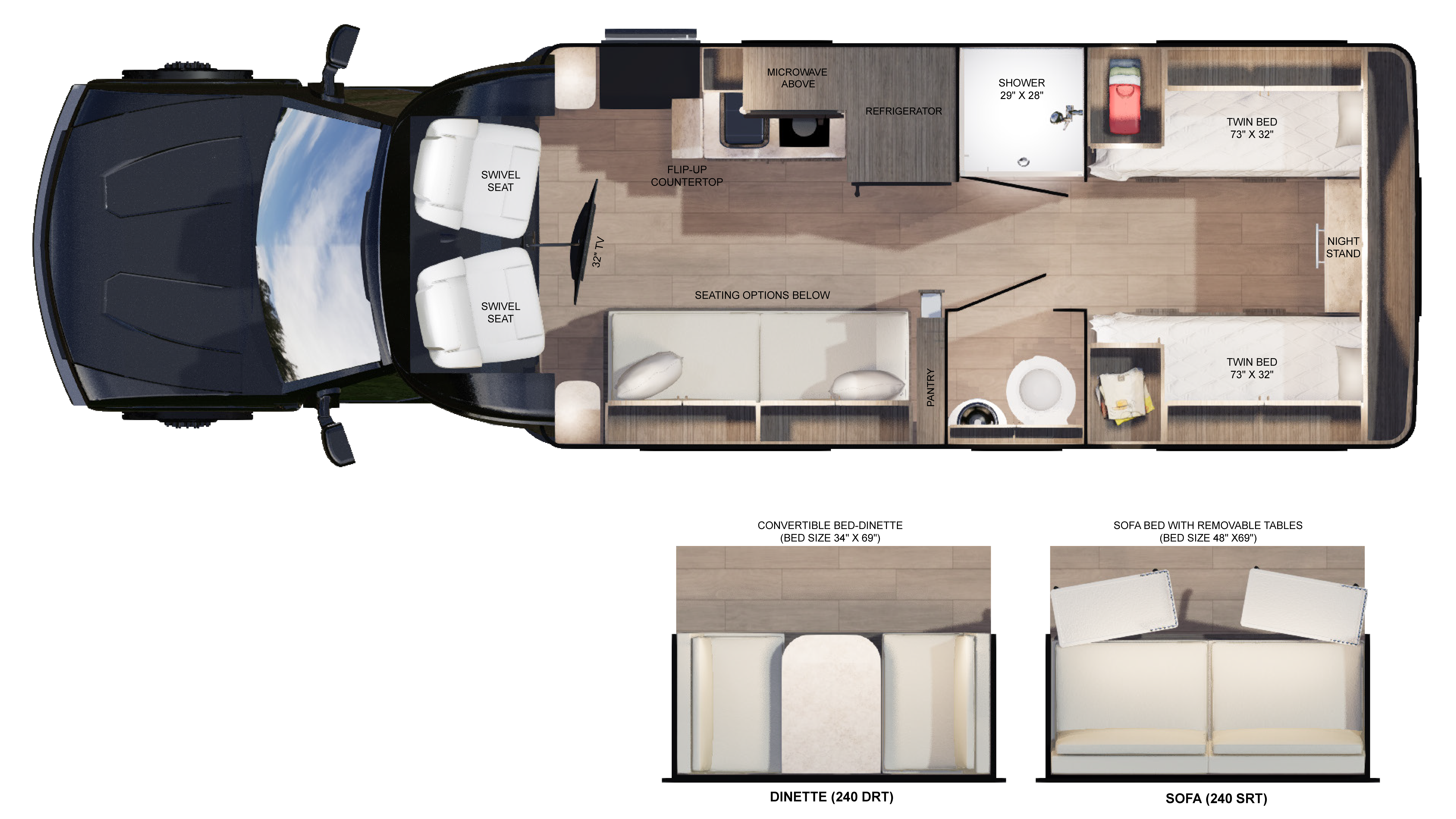

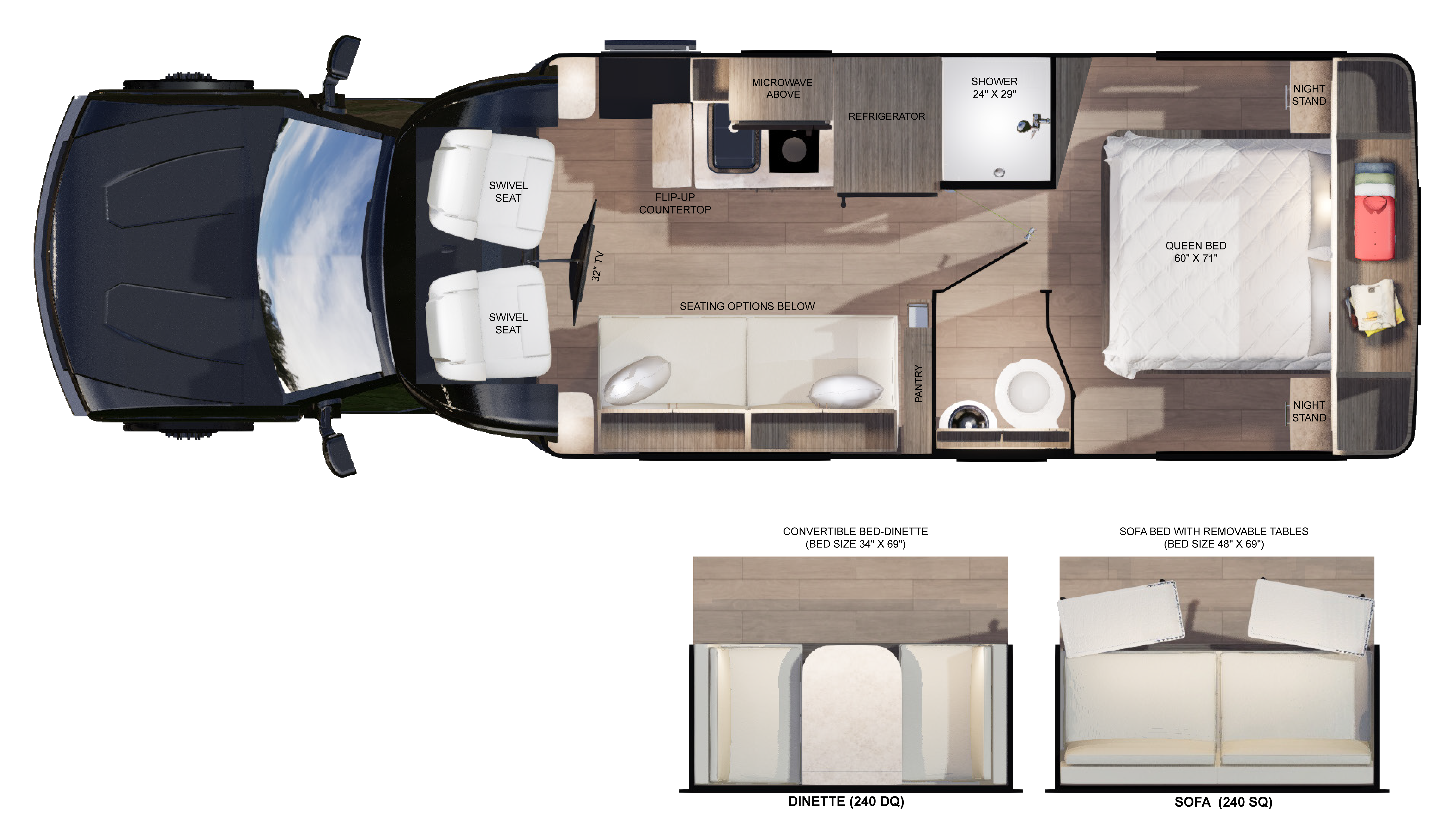

Floor Plans


DESIGNER INTERIORS

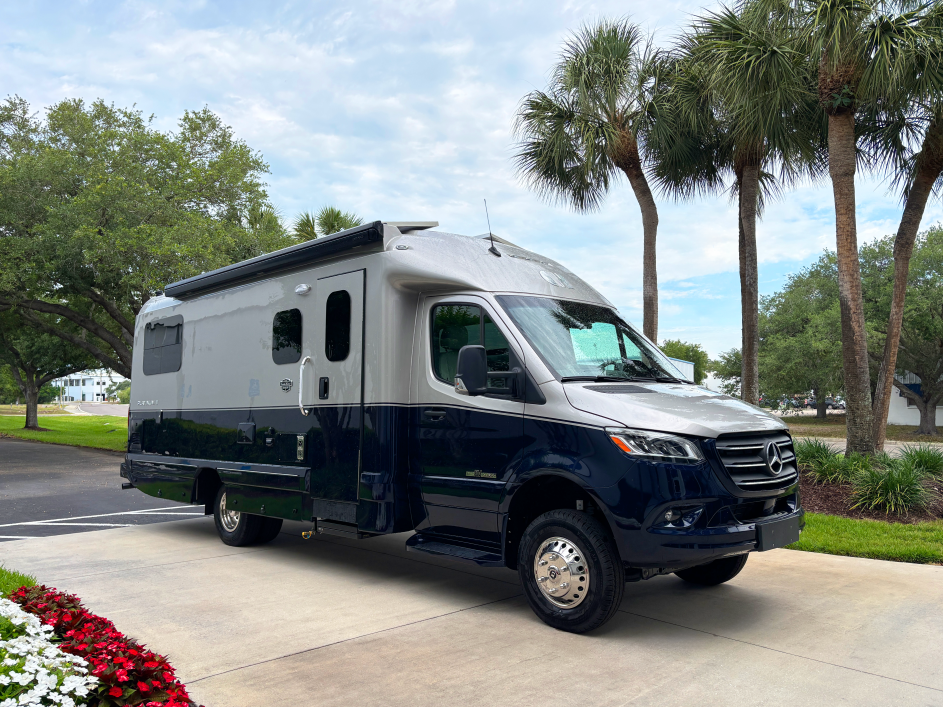

Take A Closer Look At The Platinum II 240














Platinum II 240 Features & Specifications
More Standard Features Than Any Vehicle In Its Class
- Interior
- Exterior
- Heating & Cooling
- Galley
- Plumbing
- Electrical
- Dimensions
- Tank Capacity

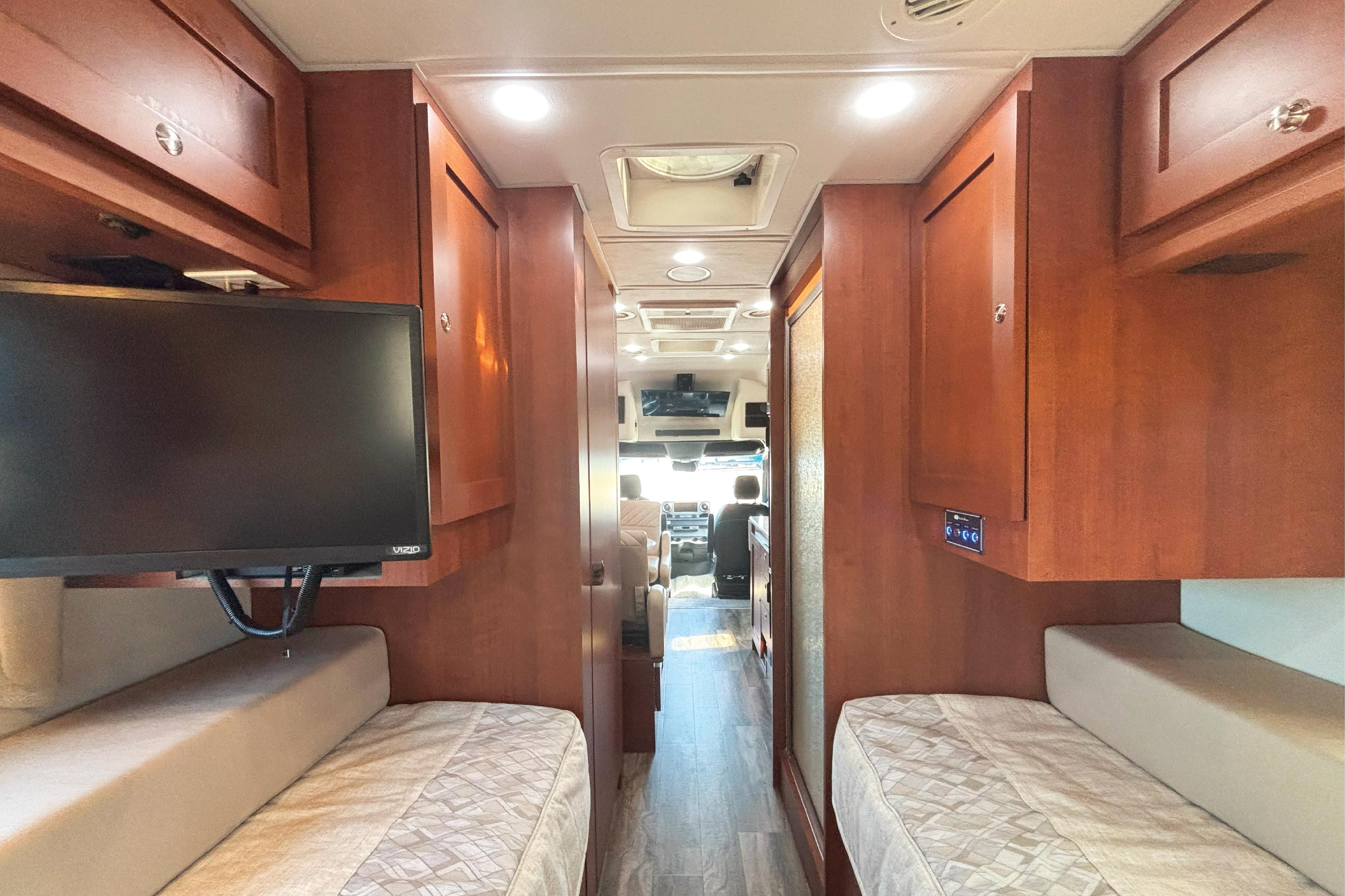

Cherry, Maple, or Teak interior design | S |

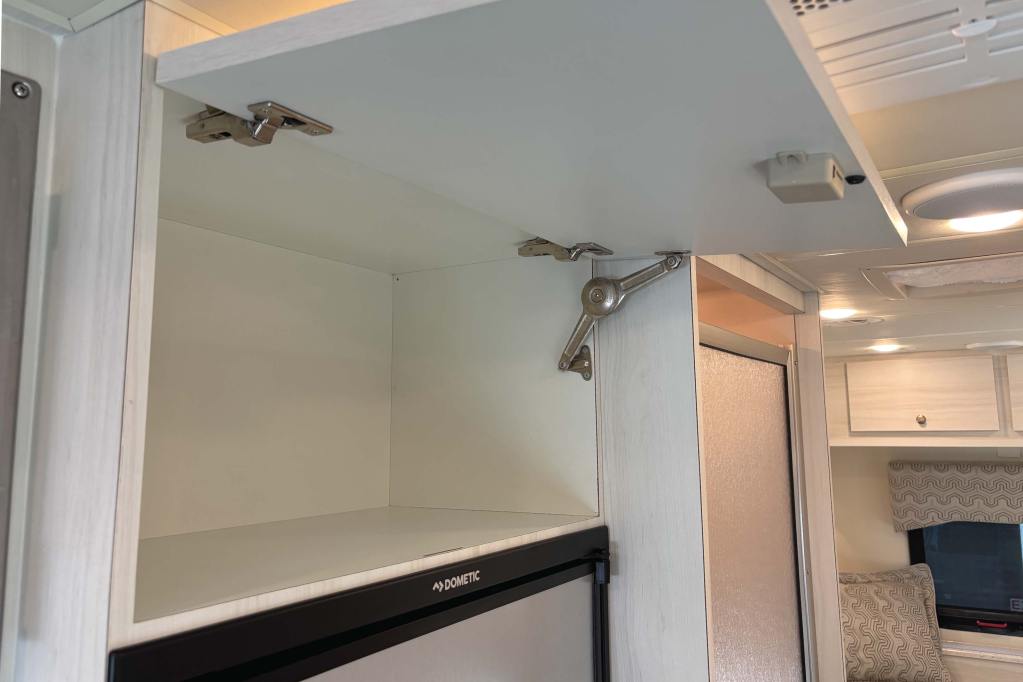

Expansive overhead storage | S |
Large wardrobe closet | S |
Solid-surface counter tops | S |
32″ flat-panel HD TV w/swing arm | S |
Blu-Ray DVD player | S |
MCD day/night shade system | S |
Front privacy drape | S |
Premium floor coverings | S |
Swivel, heated front driver and passenger seats | S |

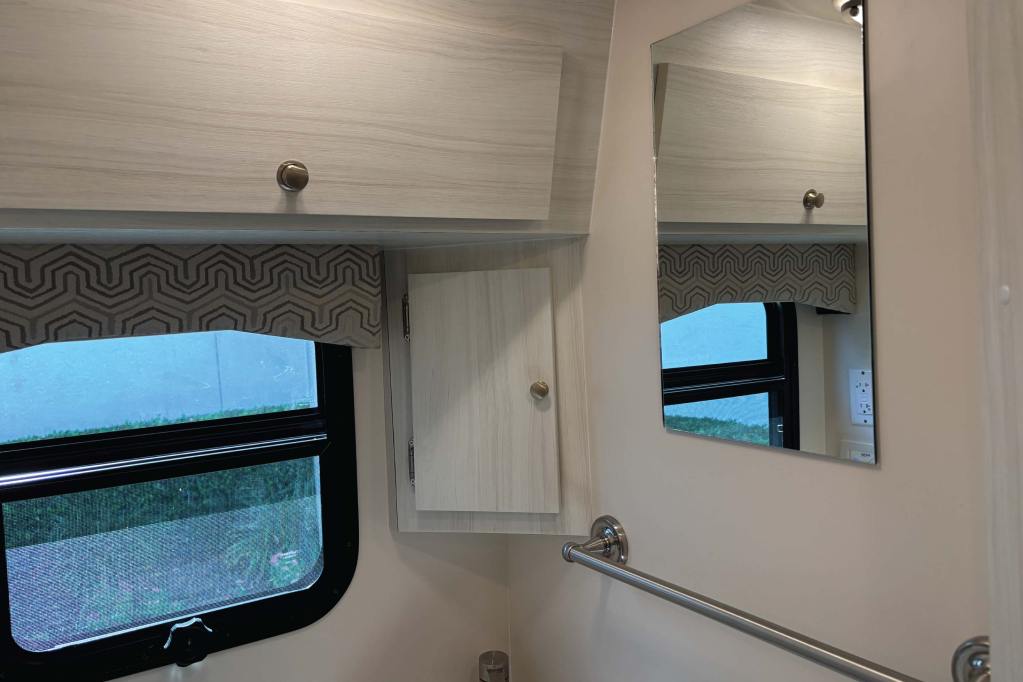

Mirror in bathroom | S |
Medicine cabinet | S |

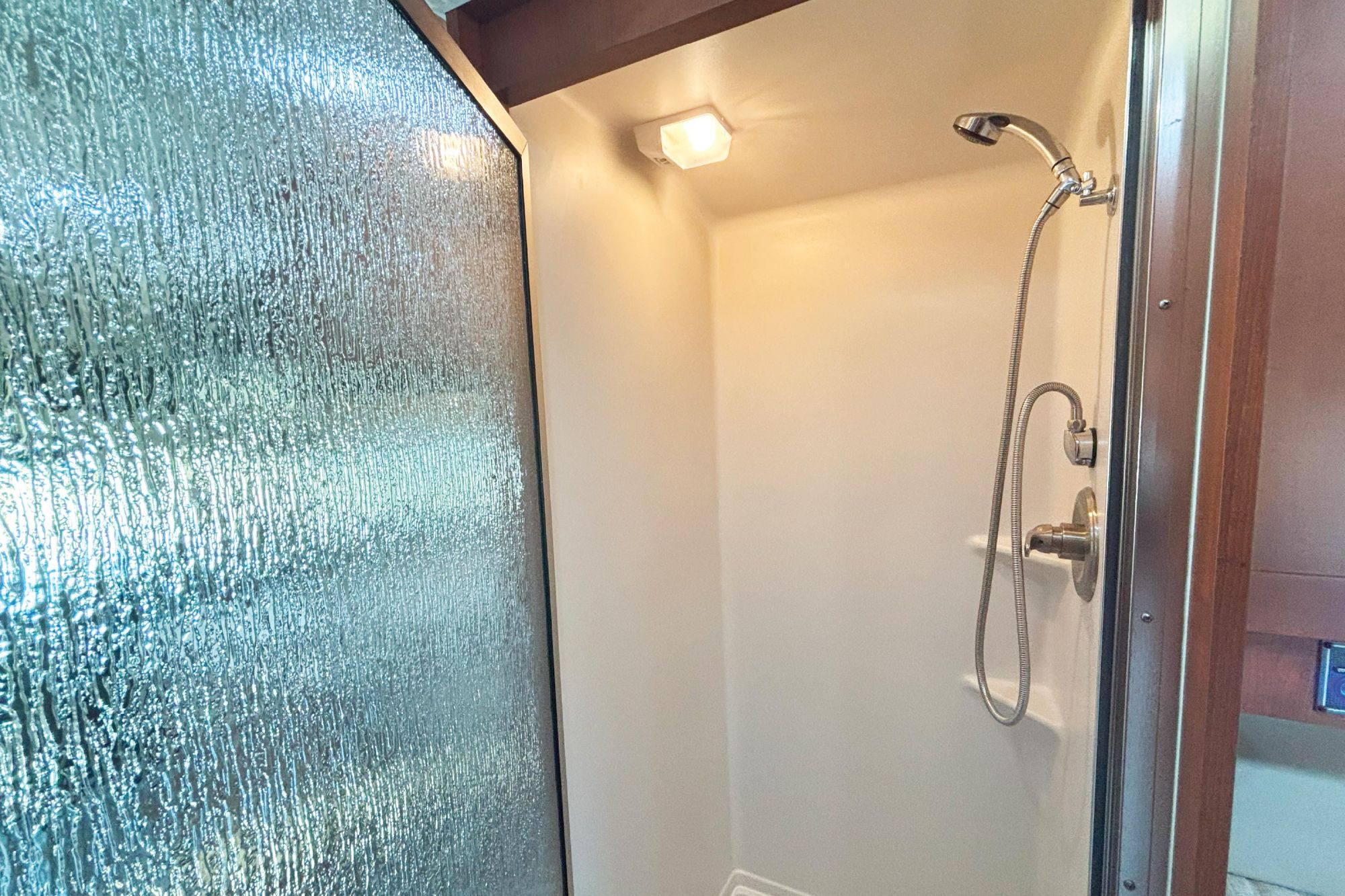

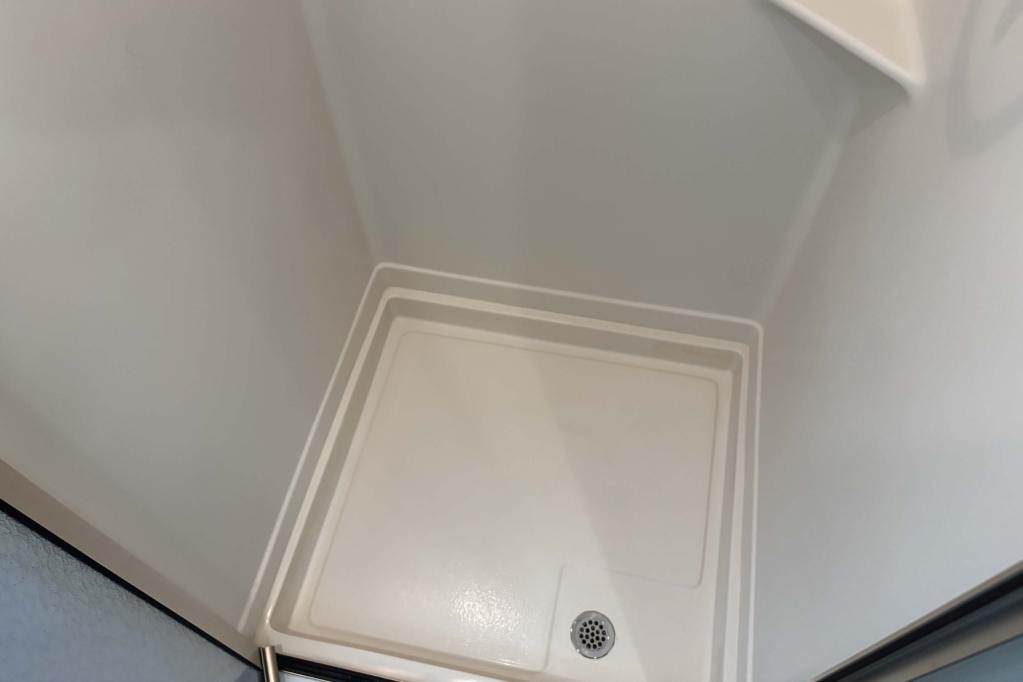

Separate stand-up shower | S |
Lavatory sink | S |

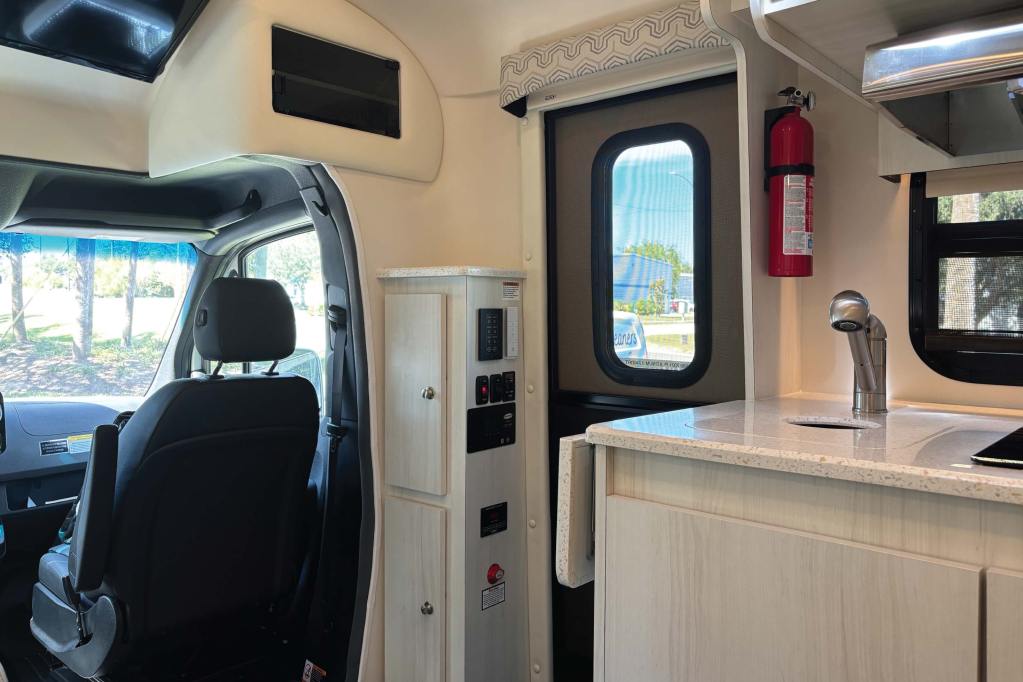

Fire extinguisher | S |
Premium trim on dashboard | S |
Sound bar for front TV | O |
Flat-panel HD TV in bedroom (some models) | O |
Memory foam mattress(es) | O |
Patented one-piece hand laid fiberglass body with carbon-fiber reinforcement | S |
Electric entrance step with light | S |
HD TV antenna / with Wi-Fi | S |
Heavy duty trailer hitch | S |

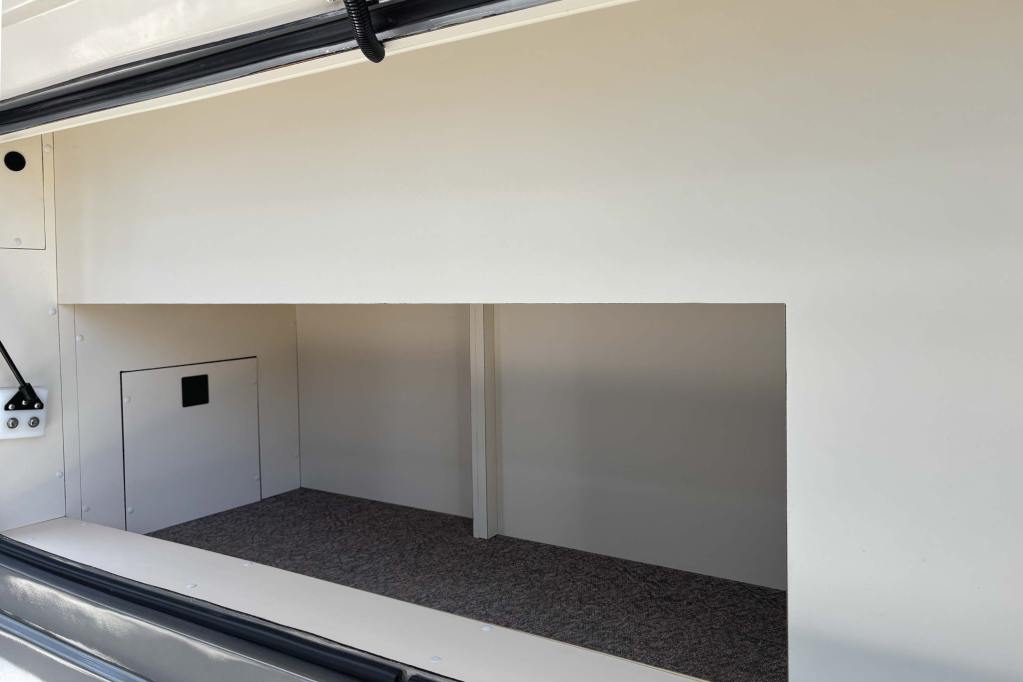

Exterior fiberglass storage compartments | S |
4″ channel aluminum floor frame | S |
Stainless steel wheel simulators | S |
Exterior hot and cold shower | S |
Full size entry door with screen | S |
Cable TV jack | S |
Equalizer system stabilizer | O |
Awning windows | S |
Rear protective skid wheels | S |
Legless power awning w/LED lights | S |
Basic two-tone full body paint | S |
Deluxe Full body paint | O |
Alcoa aluminum rims | O |
15,000 BTU ducted roof air conditioner w/heat pump | S |
30,000 BTU auto LP gas furnace | S |
(2) Fan-Tastic roof vents with thermostat and rain sensor | S |
Heavy duty insulation | S |
Heated holding tanks | S |

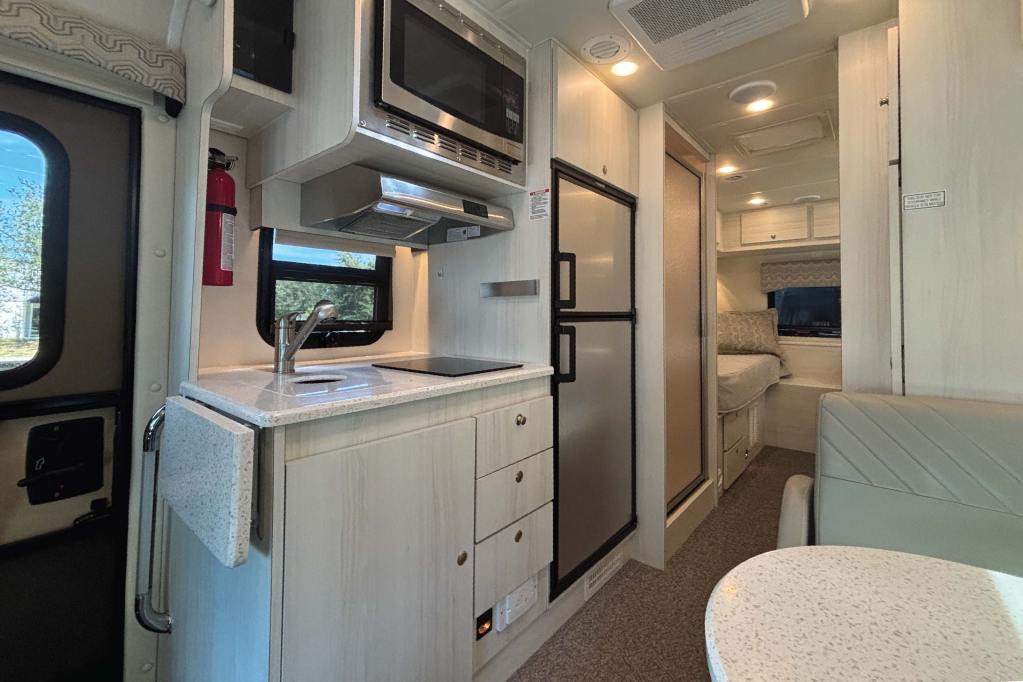

Two burner LP gas stove | S |
Stainless steel range hood | S |
Stainless convection/microwave oven | S |

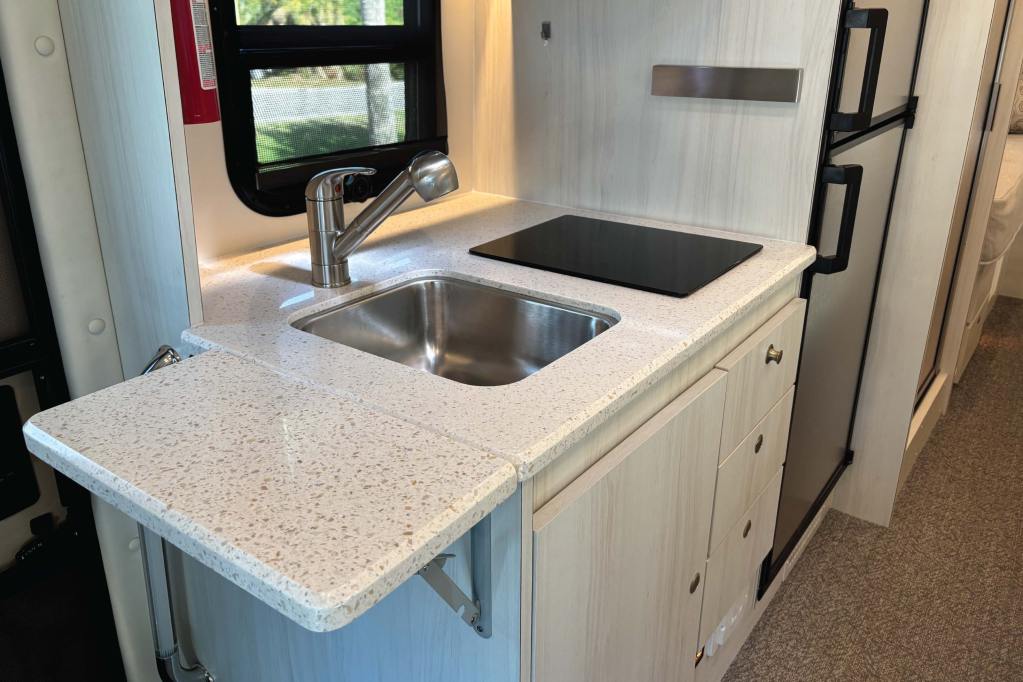

Recessed stainless kitchen sink w/cover | S |
Stainless look 6-cubic foot three-way refrigerator | S |
Spacious pantry (n/a on some floor plans) | S |

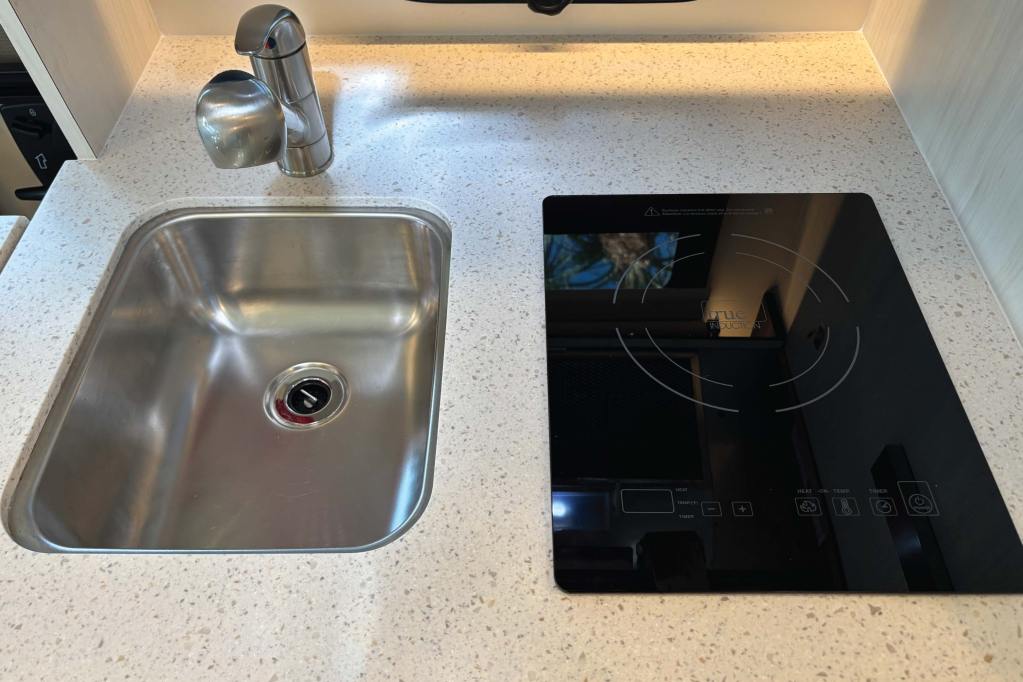

Single burner induction cook top | O |
Four-season all-weather interior plumbing | S |
Concealed large propane tank | S |
External quick disconnect for LPG grill | S |
Truma on-demand propane water heater | S |
Porcelain flush toilet w/sprayer | S |
Demand fresh water system | S |
City water connection | S |
Universal utility compartment | S |
110v/12v 45-amp converter/charger | S |
Firefly multiplex wiring | S |
Ample 110v outlets (some with USB) | S |
3.6kw LPG micro-quiet generator | S |
3.2kw diesel generator (NA with auto start) | O |
Interior and exterior LED lighting | S |
Carbon monoxide, LP gas, and smoke detectors | S |
Emergency start switch | S |
(2) 6-volt auxiliary batteries | S |
Auxiliary battery disconnect | S |
25-foot shore power cord | S |
Exterior 110v outlet | S |
Porch, compartment, and entry lights | S |
Navigation system | S |
Pure sine wave inverter (1,200-watt) | S |
Color back-up video camera and monitor | S |
XM/Sirius satellite radio-ready | S |
Auto start generator module (LPG and Gas only) | S |
In-motion satellite system w/receiver | O |
190-watt solar battery charger | O |
2-190 watt solar battery charger panels | O |
2-Lithium Ion Battery system | O |
Wheelbase | 170″ |
Overall length | 25′ 9″ |
Overall width | 8′ 0″ |
Overall height including A/C | 10′ 8″ |
Interior headroom | 6′ 4″ |
GVWR (maximum weight of loaded vehicle) | 11,030 lbs |
GCWR (maximum weight of loaded vehicle plus tow) | 15,250 lbs |
Rear axle ratio | 4.18:1 |
Interior storage (varies by floor plan) | 52 cubic feet |
Exterior storage (varies by floor plan) | 22.7 cubic feet |
Fuel Tank | 26.4 gallons |
Fresh water tank | 31 gallons |
Grey water tank | 28 gallons |
Black water tank | 25 gallons |
Propane tank | 68 lbs / 15 gallons |
Platinum II 240 Chassis Features

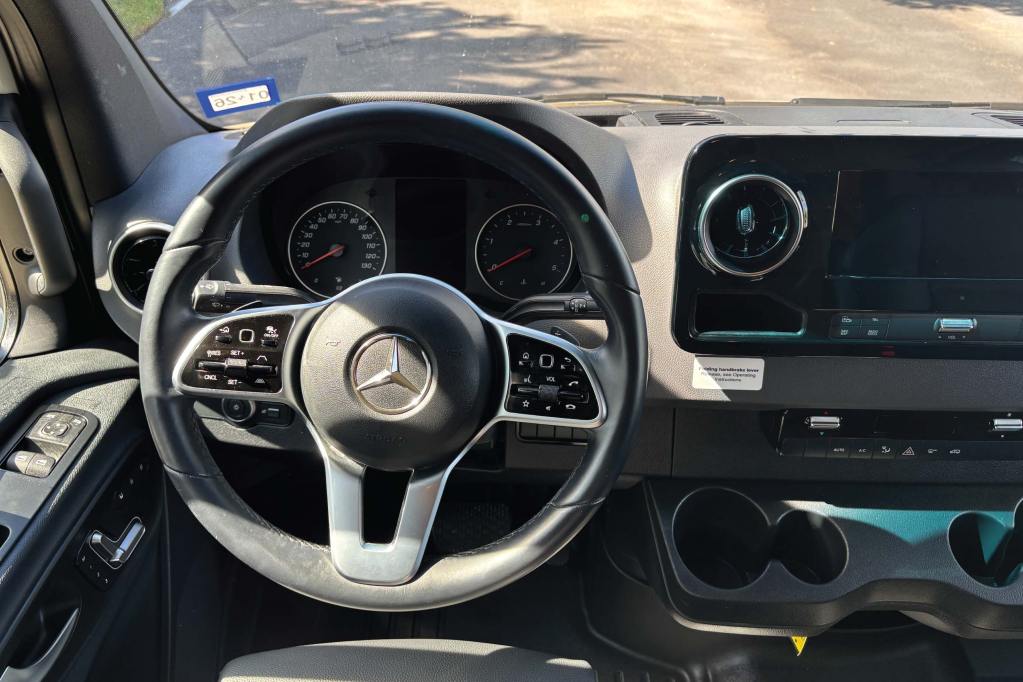

Mercedes Sprinter 3500 Chassis

- 170-in. wheelbase
- 3.0L V6 diesel engine with adaptive ESP, 188HP and 325 foot-pounds of torque
- Electronically controlled 5-speed transmission
- 180-amp alternator
- Four-wheel ABS disc brakes
- Power assisted rack-and-pinion steering
- In-dash AM/FM/CD player
- Keyless entry
- Power windows
- Power door locks
- 26.4 gallon fuel tank (diesel)
- Driver/passenger airbag supplemental restraint system
- Air conditioning
- Cruise control
- Tilt steering wheel
- Intermittent wipers
- Front chrome grill
- Bi-xenon head lamps
- Navigation system
- Color back-up camera
- XM/Sirius ready
Available Paint & Decor
Full Body Custom Paint On All Models With Designer Fabrics & Surfaces For Interior
Basic Paint Included:


Deluxe Paint Additional Charge:




GALLERY
Cafe’ Decor

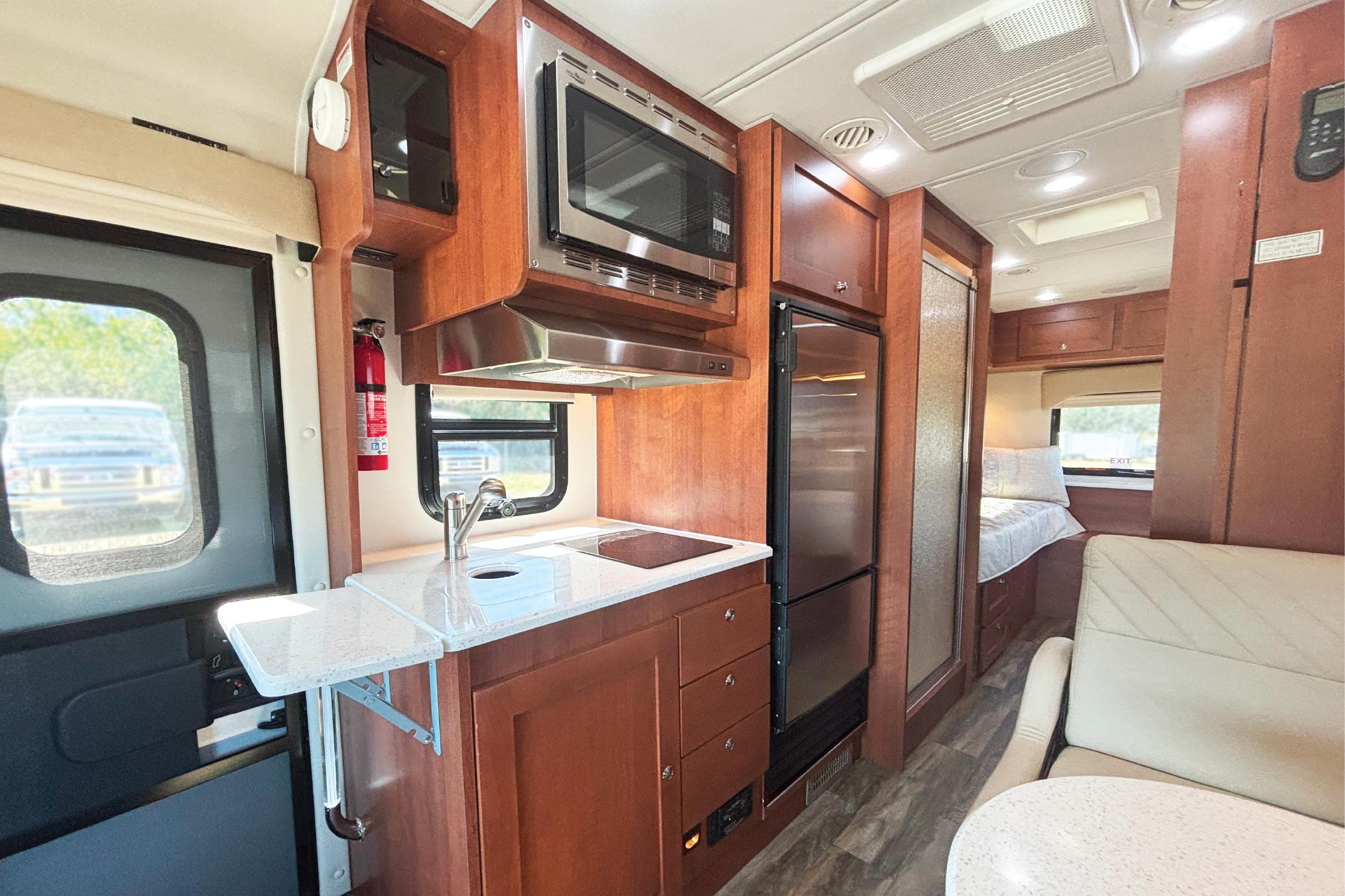

CHERRY DECOR






CYPRESS DECOR







MAPLE DECOR







TEAK DECOR









Coach House Warranty
Peace of Mind – Guaranteed
Our warranty policies can be summed up simply: We stand behind our vehicles, period! Every component of a Platinum motorhome is covered by warranty: The Coach House conversion and the drive-train are covered for three years or 36,000 miles, whichever comes first. The appliances and fixtures are covered by their respective manufacturers for varying terms. Warranty service is available nationwide at the repair facility of your choice, or at the Coach House plant in Nokomis, Florida.
