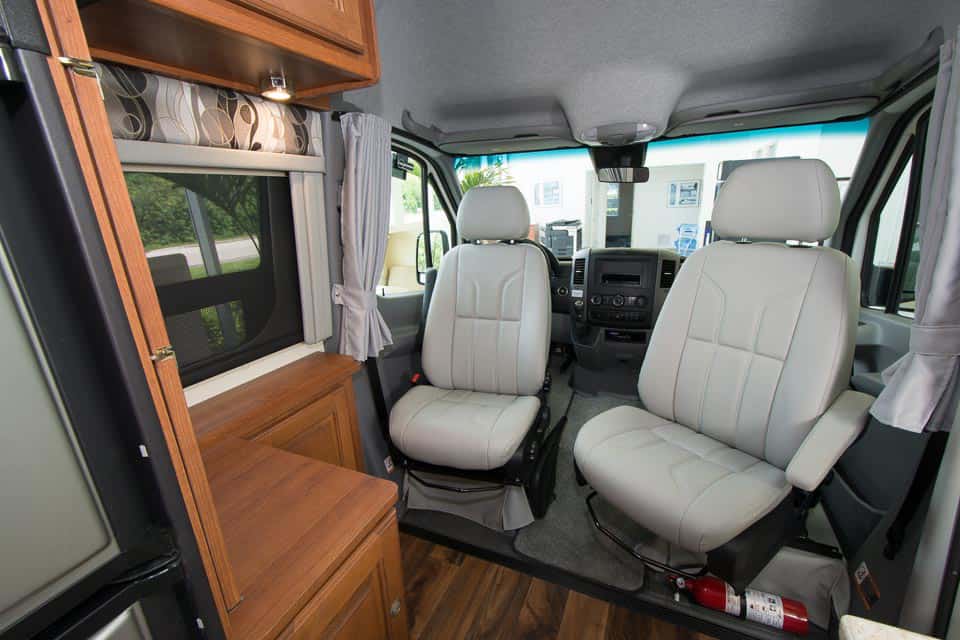

Arriva V24 Interior Swivel Seats

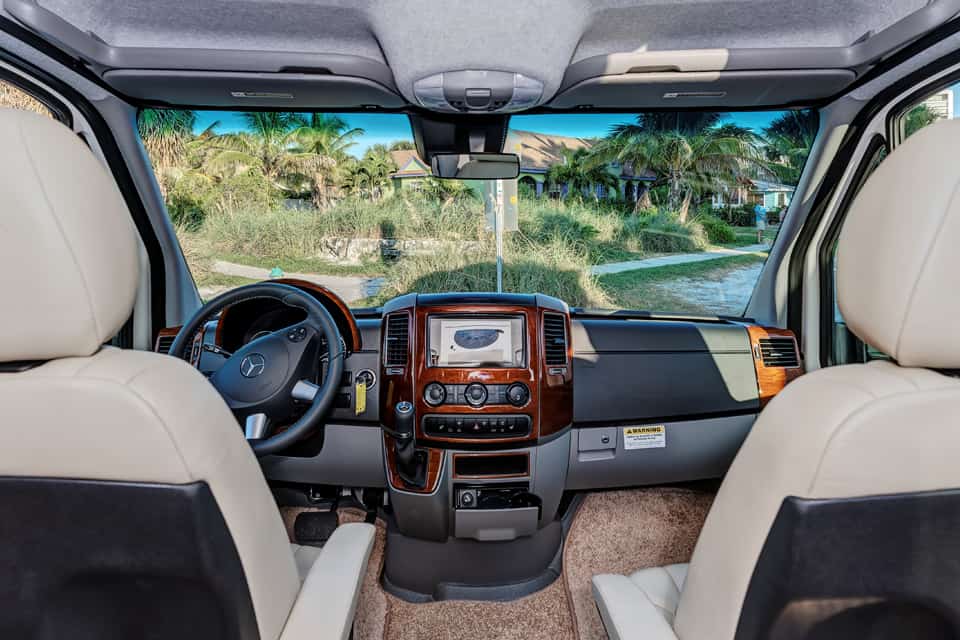

Arriva V24 Interior Front View
Arriva V24 Interior Rear View
Arriva V24 Exterior Front View Indoors
Arriva V24 Exterior Rear View Indoors
Arriva V24 Exterior Body Paint Options
Arriva V24 Exterior Swivel TV
Arriva V24 Interior Entry Door Closeup
Arriva V24 Interior Cabin Privacy Drape
Arriva V24 Interior Swivel Seats w/Table
Arriva V24 Interior Galley View

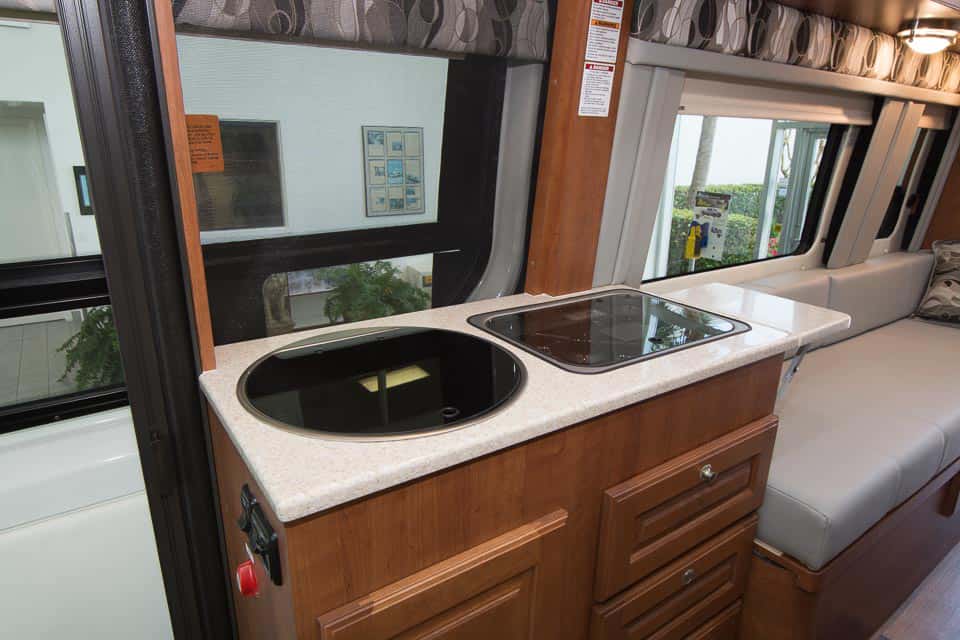

Arriva V24 Interior Sink & Stove

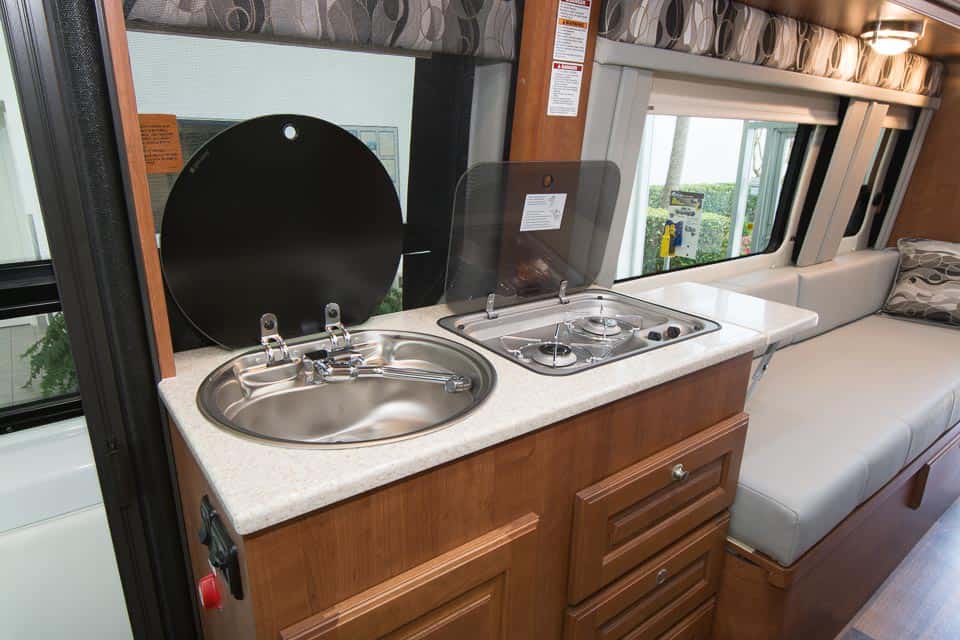

Arriva V24 Interior Sink & Stove Open View

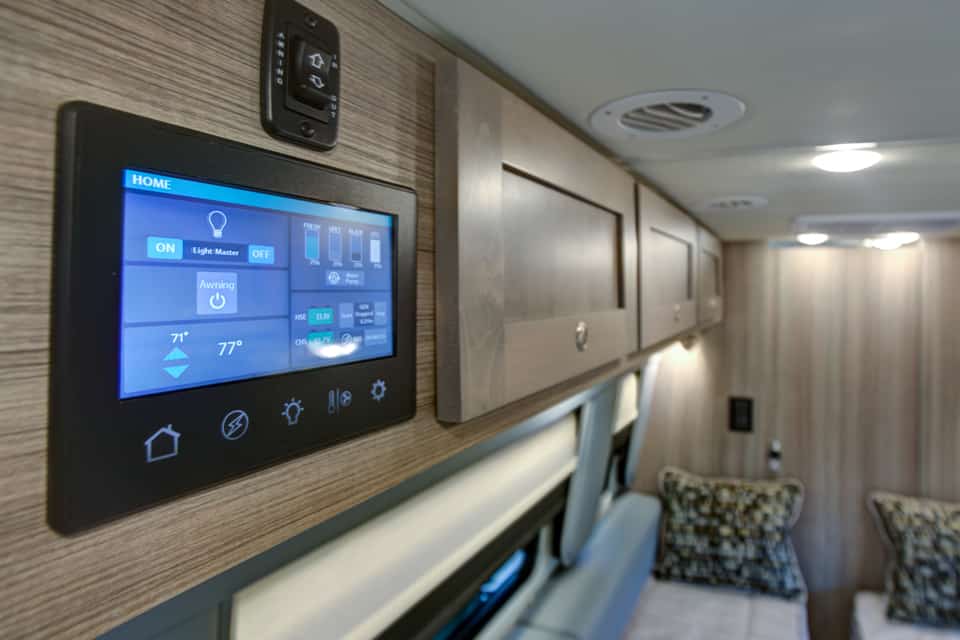

Arriva V24 Interior Thermostat Controls

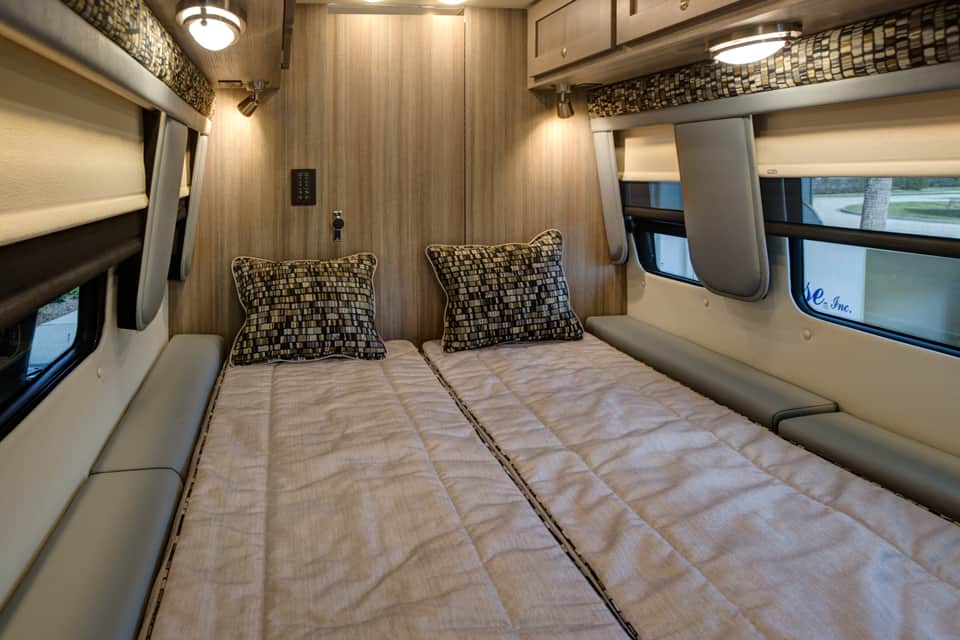

Arriva V24 Interior Twin Beds Pulled Out

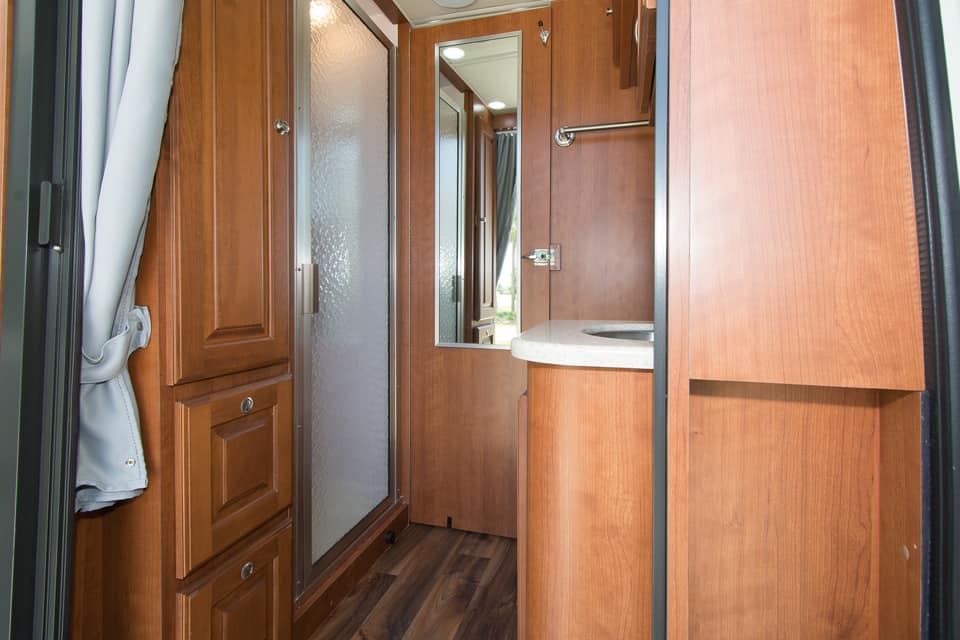

Arriva V24 Interior Bathroom View

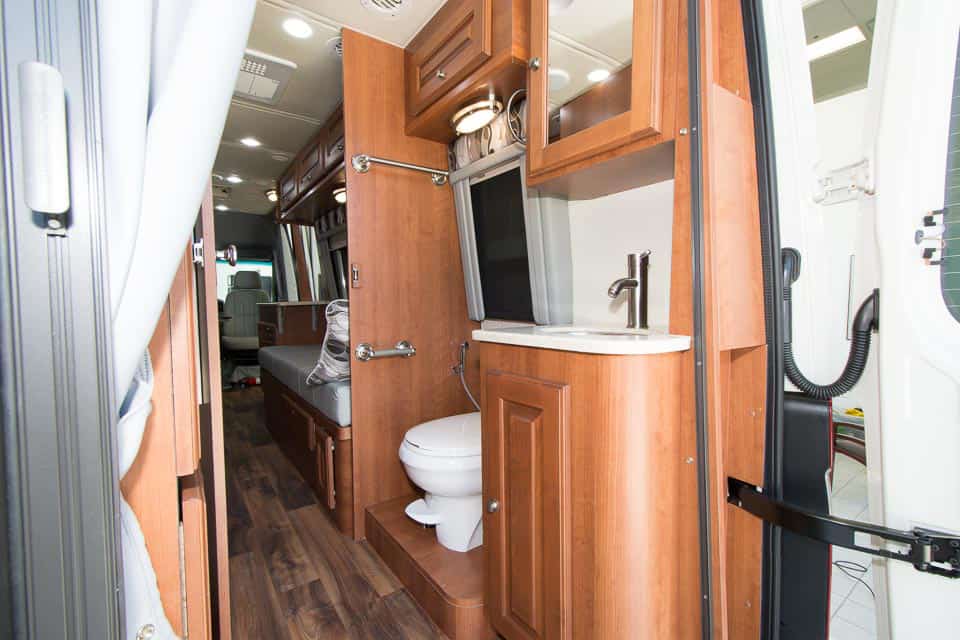

Arriva V24 Interior Toilet & Sink

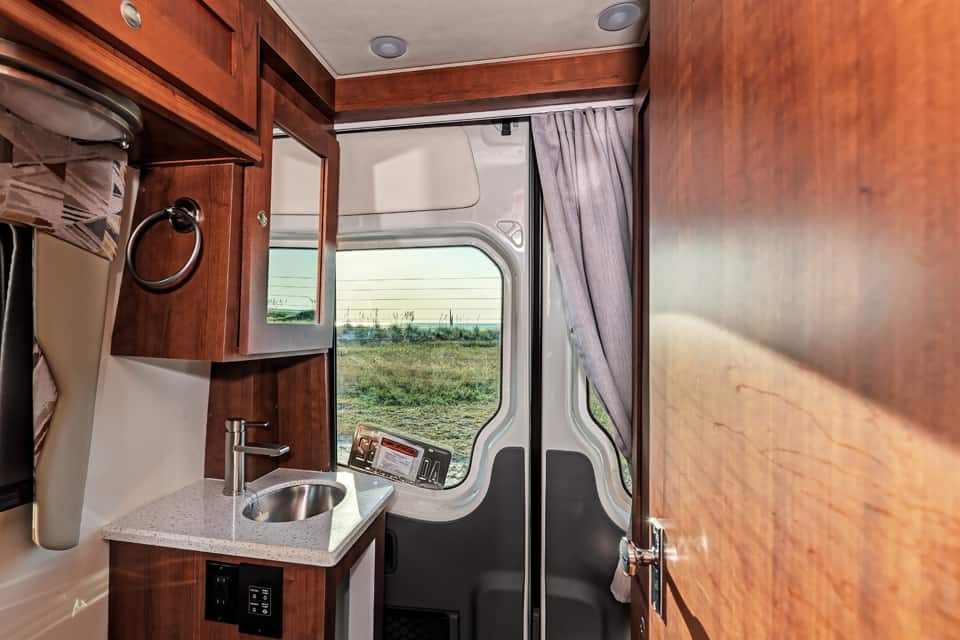

Arriva V24 Interior Back Door
Arriva V24 Exterior Rear Doors Open View

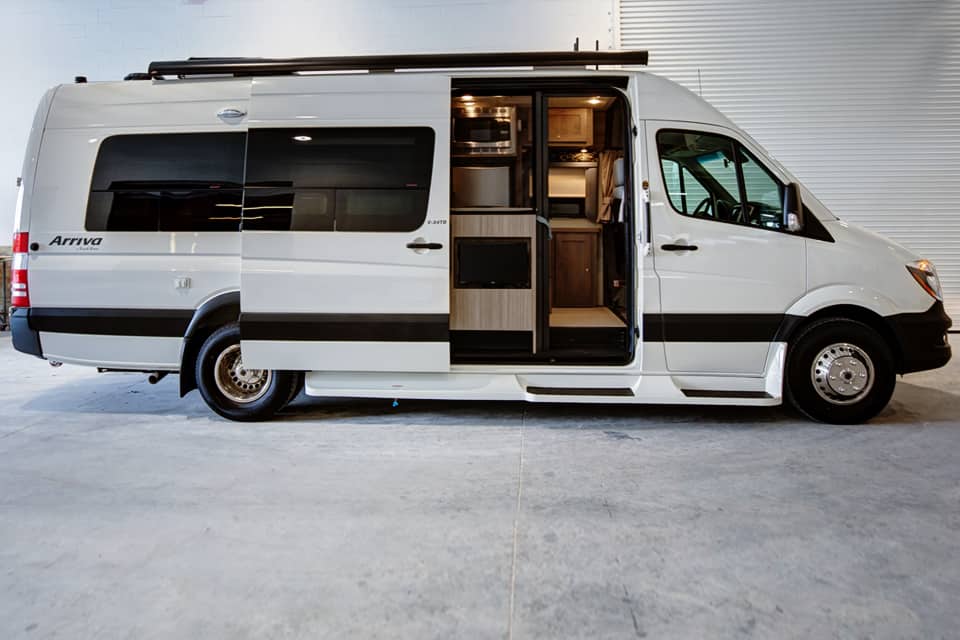

Arriva V24 Exterior Side Door Open View

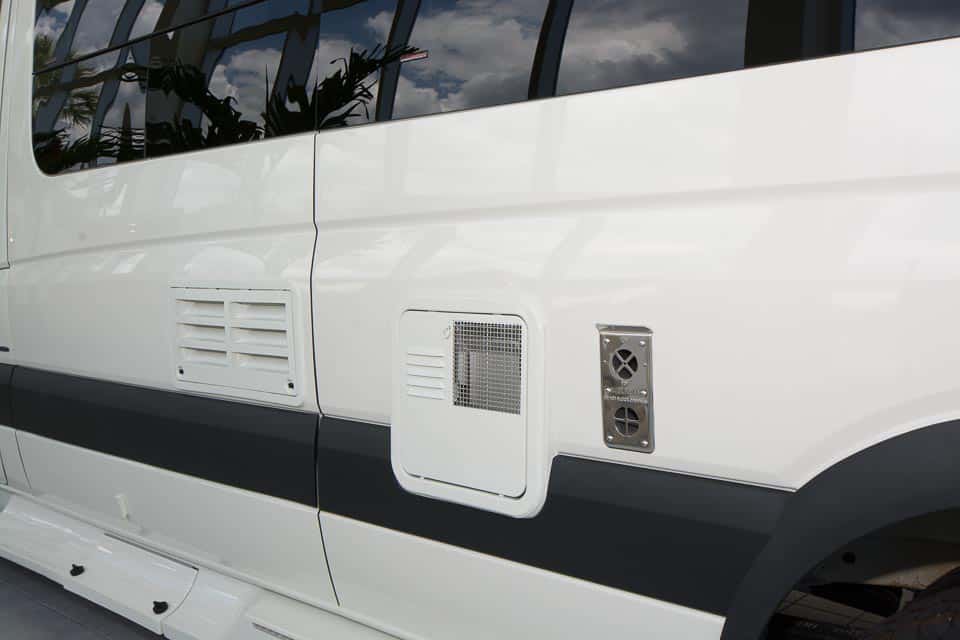

Arriva V24 Exterior Side Closeup

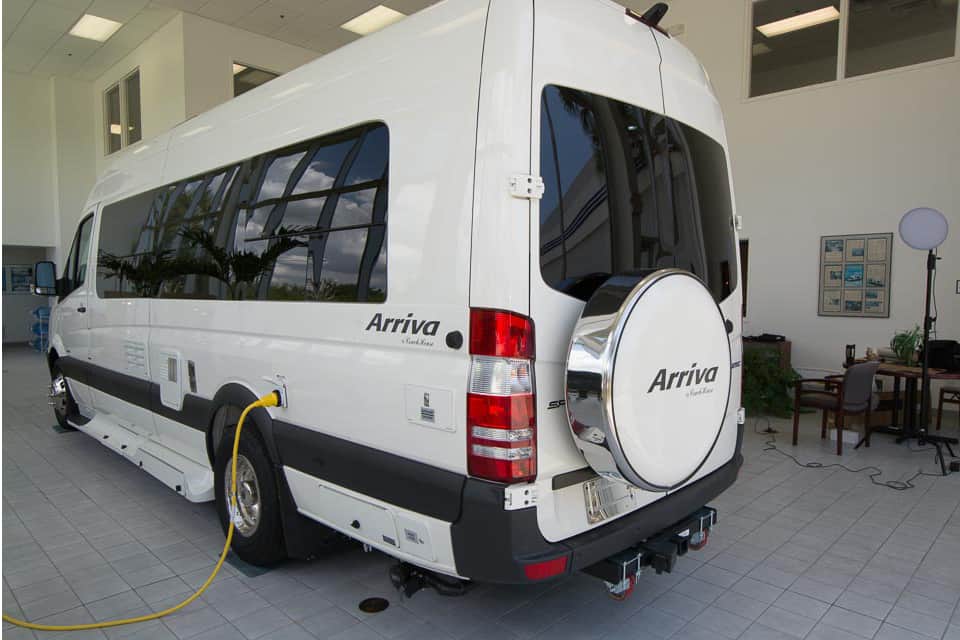

Arriva V24 Exterior Rear Side View

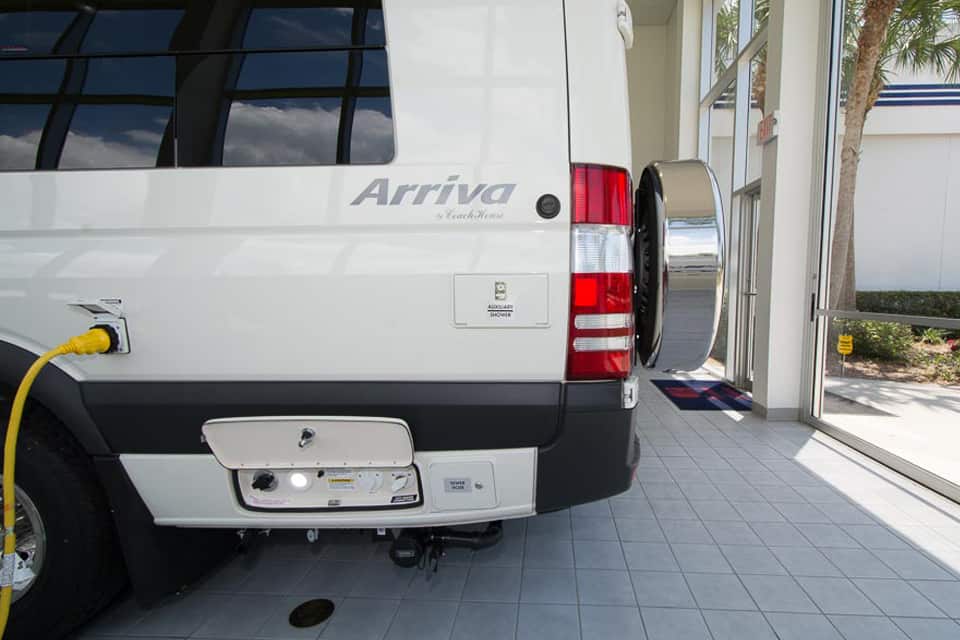

Arriva V24 Exterior Rear Outlet & Tanks Access

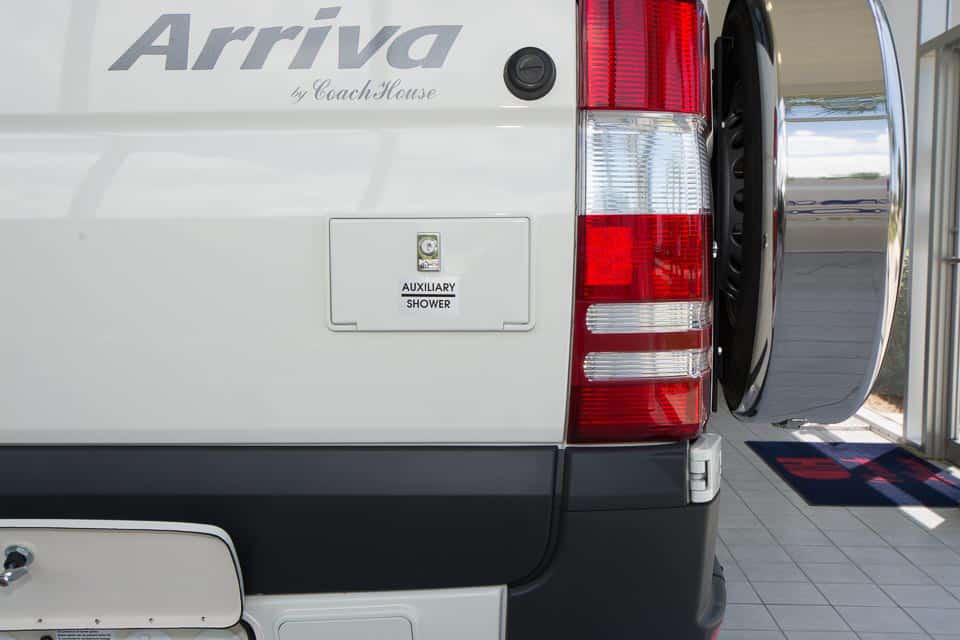

Arriva V24 Exterior Auxiliary Shower Access

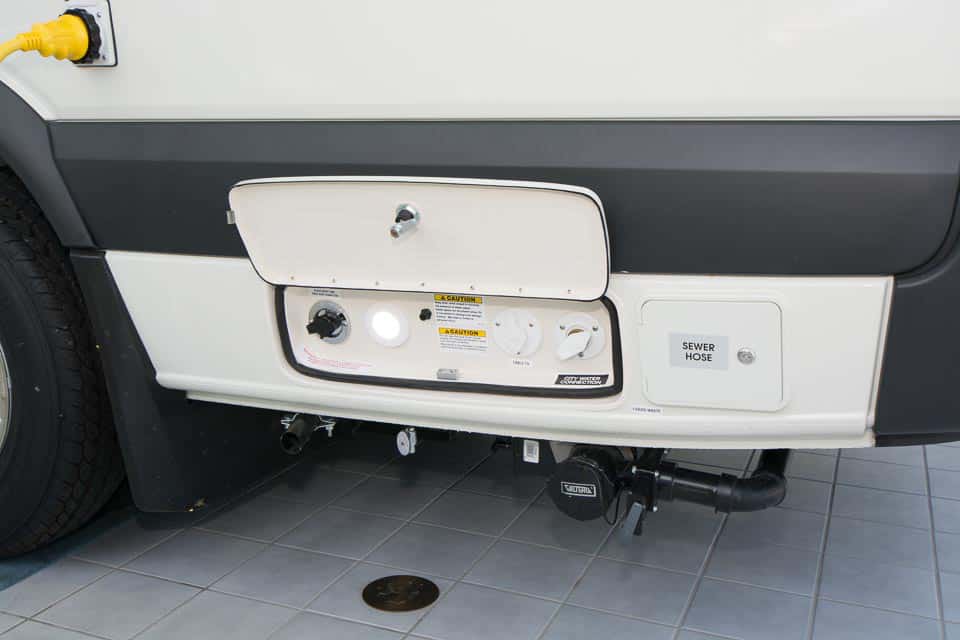

Arriva V24 Exterior Rear Tanks Access Closeup

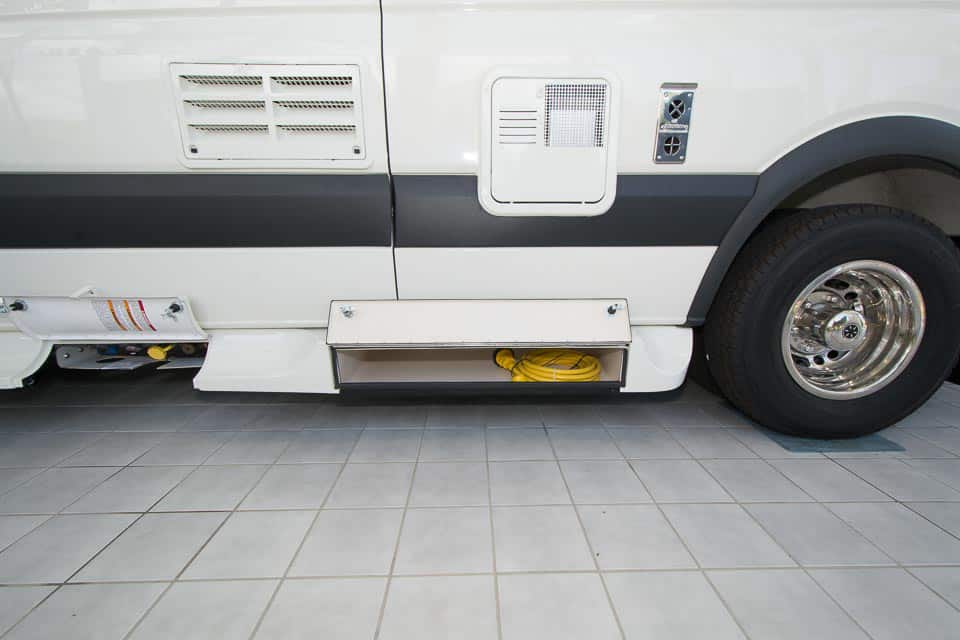

Arriva V24 Exterior Storage Access

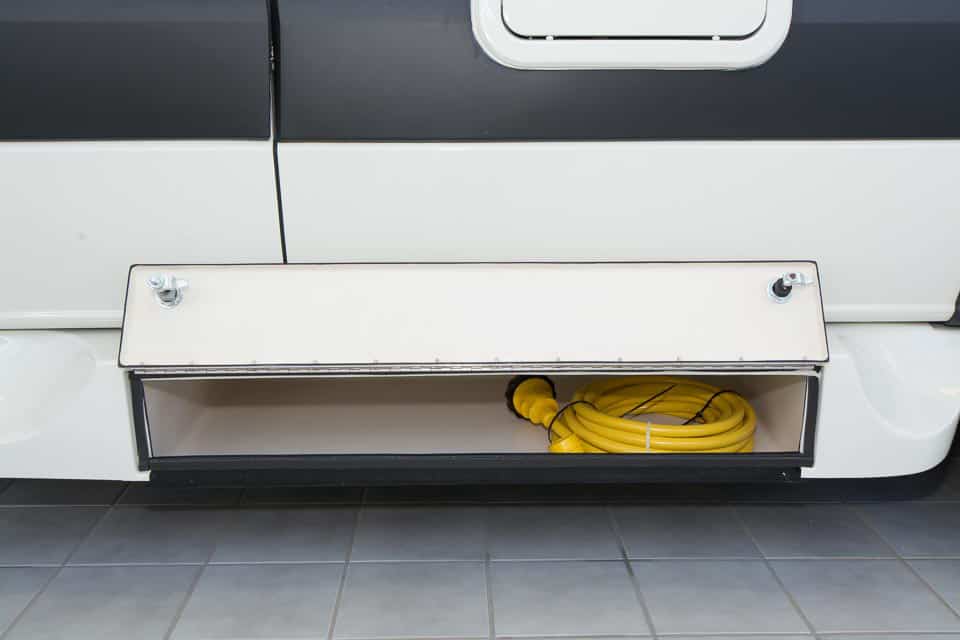

Arriva V24 Exterior Storage Closeup

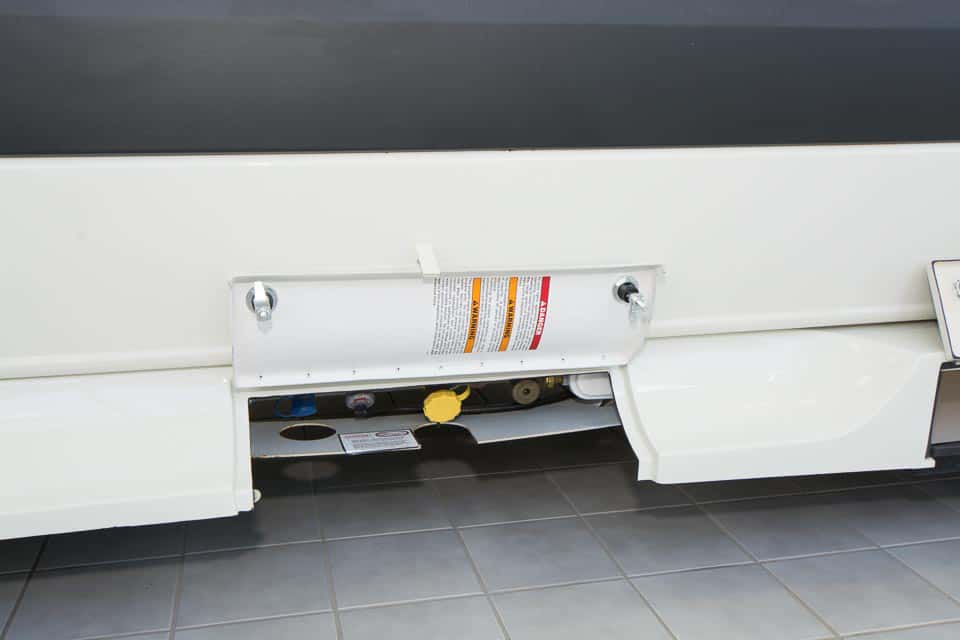

Arriva V24 Exterior Bottom Access door

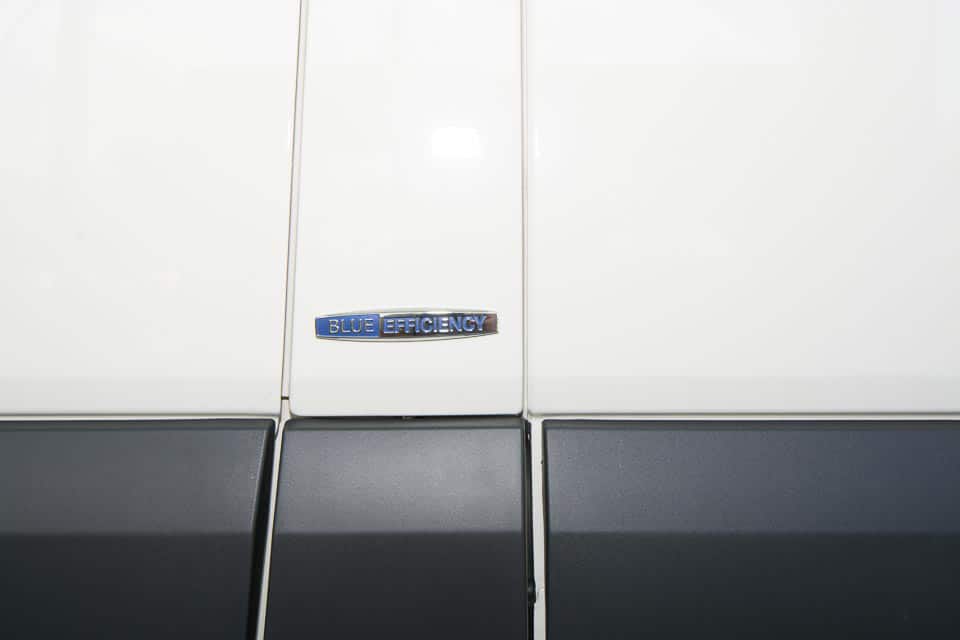

Arriva V24 Exterior Blue Efficiency Label

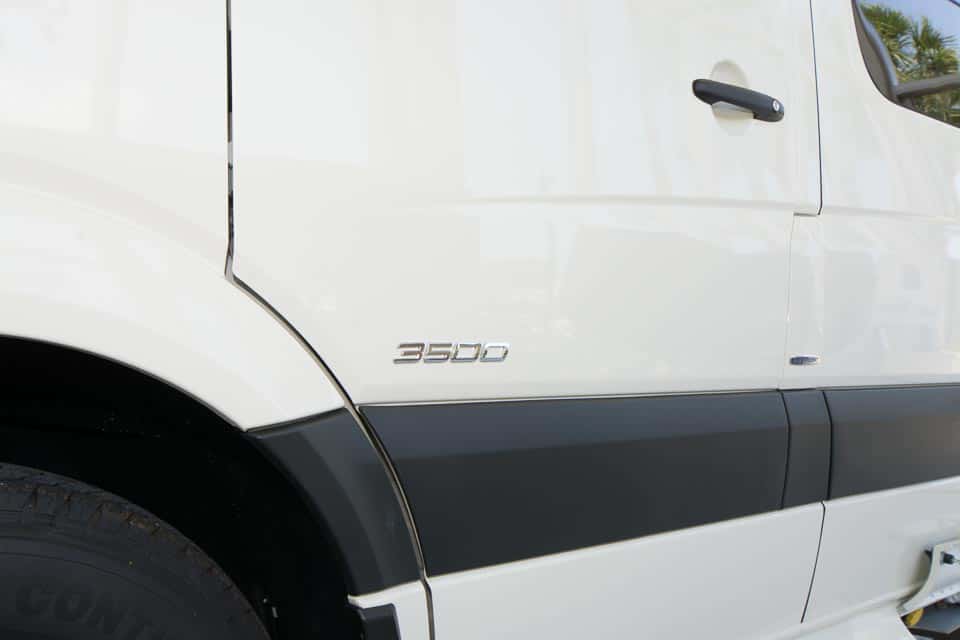

Arriva V24 Exterior Chassis Label Closeup
Arriva V24 Exterior Arriva Label Closeup

Video Gallery


Arriva V-24 TB Features & Specifications

More Standard Features Than Any Vehicle In Its Class

  • Interior
  • Exterior
  • Heating & Cooling
  • Galley
  • Plumbing
  • Electrical
  • Dimensions
  • Tank Capacity
Cherry, Maple, Teak, Cafe’ or Cypress Cabinet colors S
Expansive overhead storage S
Solid-surface counter tops S
24″ flat-panel HD TV w/swing arm S
Blu-Ray DVD player S
MCD day/night shade system S
Front privacy drape S
Premium floor coverings S
Power, swivel, heated front driver and passenger seats S
Mirror in bathroom S
Medicine cabinet S
Separate stand-up shower with separate toilet S
Lavatory sink S
Fire extinguisher S
Premium trim on dashboard S
Flat-panel HD TV in bedroom S
Hybrid mattresses S
Side and rear entry screen door package O
HD TV antenna / with Wi-Fi S
Heavy duty trailer hitch S
Exterior fiberglass storage compartment S
Stainless steel wheel simulators S
Exterior hot and cold shower S
Cable TV jack S
Awning windows S
Rear protective skid wheels S
Power legless awning with LED lights S
Spare tire and rim O
Alcoa aluminum rims O
15,000 BTU ducted roof air conditioner w/heat pump S
19,000 BTU auto LP gas furnace S
Fantastic roof vent with thermostat and rain sensor S
Heavy duty insulation S
Heated holding tanks S
Two burner LP gas stove S
Stainless convection/microwave oven S
Recessed stainless kitchen sink w/cover S
Stainless look 6-cubic foot three-way refrigerator S
Spacious pull out pantry S
6 cubic foot AC / DC Compressor Refrigerator O
Four-season all-weather interior plumbing S
Concealed large propane tank S
External quick disconnect for LPG grill S
Truma on-demand propane water heater S
Porcelain flush toilet w/sprayer S
Demand fresh water system S
City water connection S
Universal utility compartment S
110v/12v 45-amp converter/charger S
Firefly multiplex wiring S
Ample 110v outlets (some with USB) S
3.6kw LPG micro-quiet generator S
Interior and exterior LED lighting S
Carbon monoxide, LP gas, and smoke detectors S
Emergency start switch S
(2) Lithium Ion Batteries S
Auxiliary battery disconnect S
25-foot shore power cord S
Exterior 110v outlet S
Porch, compartment, and entry lights S
Navigation system S
Pure sine wave inverter (2,000-watt) S
Color back-up video camera and monitor S
XM/Sirius satellite radio-ready S
Auto start generator module (LPG and Gas only) S
190-watt solar battery charger O
In-motion satellite (Dish or Direct) O
Wheelbase 170″
Overall length 24′ 2″
Overall width 6′ 6.5″
Overall height including A/C 9′ 8″
Interior headroom 6′ 2″
GVWR (maximum weight of loaded vehicle) 11,030 lbs
GCWR (maximum weight of loaded vehicle plus tow) 15,250 lbs
Rear axle ratio 3.92:1
Fuel Tank 26.4 gallons
Fresh water tank 31 gallons
Grey water tank 20 gallons
Black water tank 13 gallons
Propane tank 55 lbs / 12 gallons

Arriva V24 Chassis Features


Mercedes Sprinter 3500 Chassis

Arriva V24 Exterior Body Paint Options
  • 170-in. wheelbase
  • 3.0L V6 diesel engine with adaptive ESP, 188HP and 325 foot-pounds of torque
  • Electronically controlled 5-speed transmission
  • 180-amp alternator
  • Four-wheel ABS disc brakes
  • Power assisted rack-and-pinion steering
  • In-dash AM/FM/CD player
  • Keyless entry
  • Power windows
  • Power door locks
  • 26.4 gallon fuel tank (diesel)
  • Driver/passenger airbag supplemental restraint system
  • Air conditioning
  • Cruise control
  • Tilt steering wheel
  • Intermittent wipers
  • Front chrome grill
  • Bi-xenon head lamps
  • Navigation system
  • Color back-up camera
  • XM/Sirius ready

Available Paint & Decor


Factory Body Paint In Two Color Options:
Coach House Arriva body paint in graphite
Color: Tenorite Grey
Coach House Arriva body paint in ivory
Color: Ivory
Arriva

Coach House Warranty


Peace of Mind – Guaranteed

Our warranty policies can be summed up simply: We stand behind our vehicles, period! Every component of a Platinum motorhome is covered by warranty: The Coach House conversion and the drive-train are covered for three years or 36,000 miles, whichever comes first. The appliances and fixtures are covered by their respective manufacturers for varying terms. Warranty service is available nationwide at the repair facility of your choice, or at the Coach House plant in Nokomis, Florida.
