Platinum 220 Exterior Front View
Platinum 220 Interior Dining Table
Platinum 220 Exterior Side View Passenger
Platinum 220 Interior Twin Beds View

Floor Plans

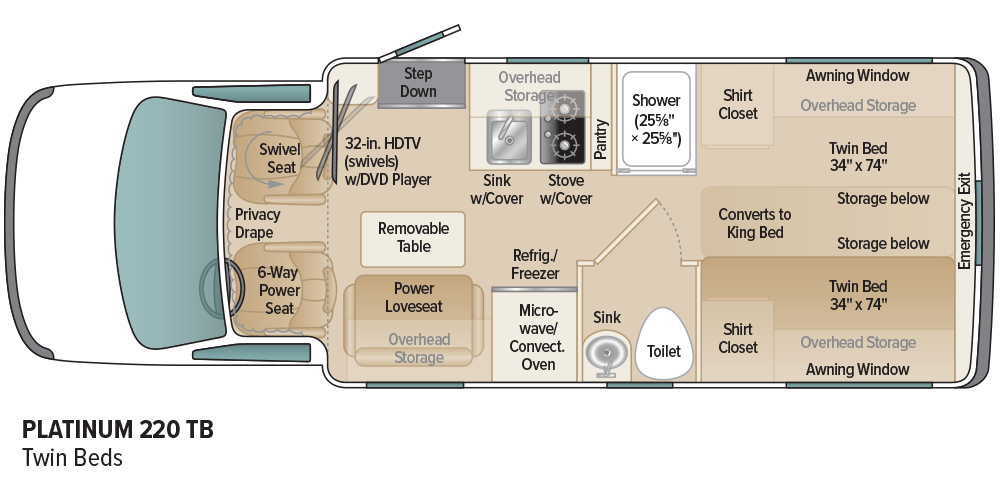

Coach House Platinum 220 TB Floorplan

DESIGNER INTERIORS

Take A Closer Look At The Platinum 220

Platinum 220 Exterior Front View

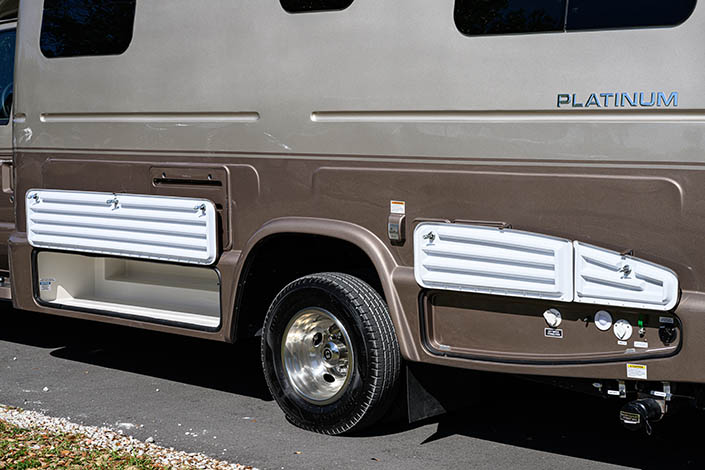

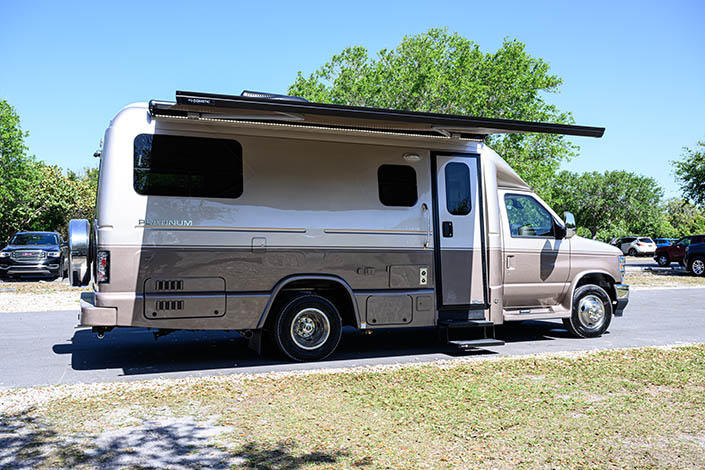

Platinum 220 Exterior Side View Passenger
Platinum 220 Exterior Side View Driver

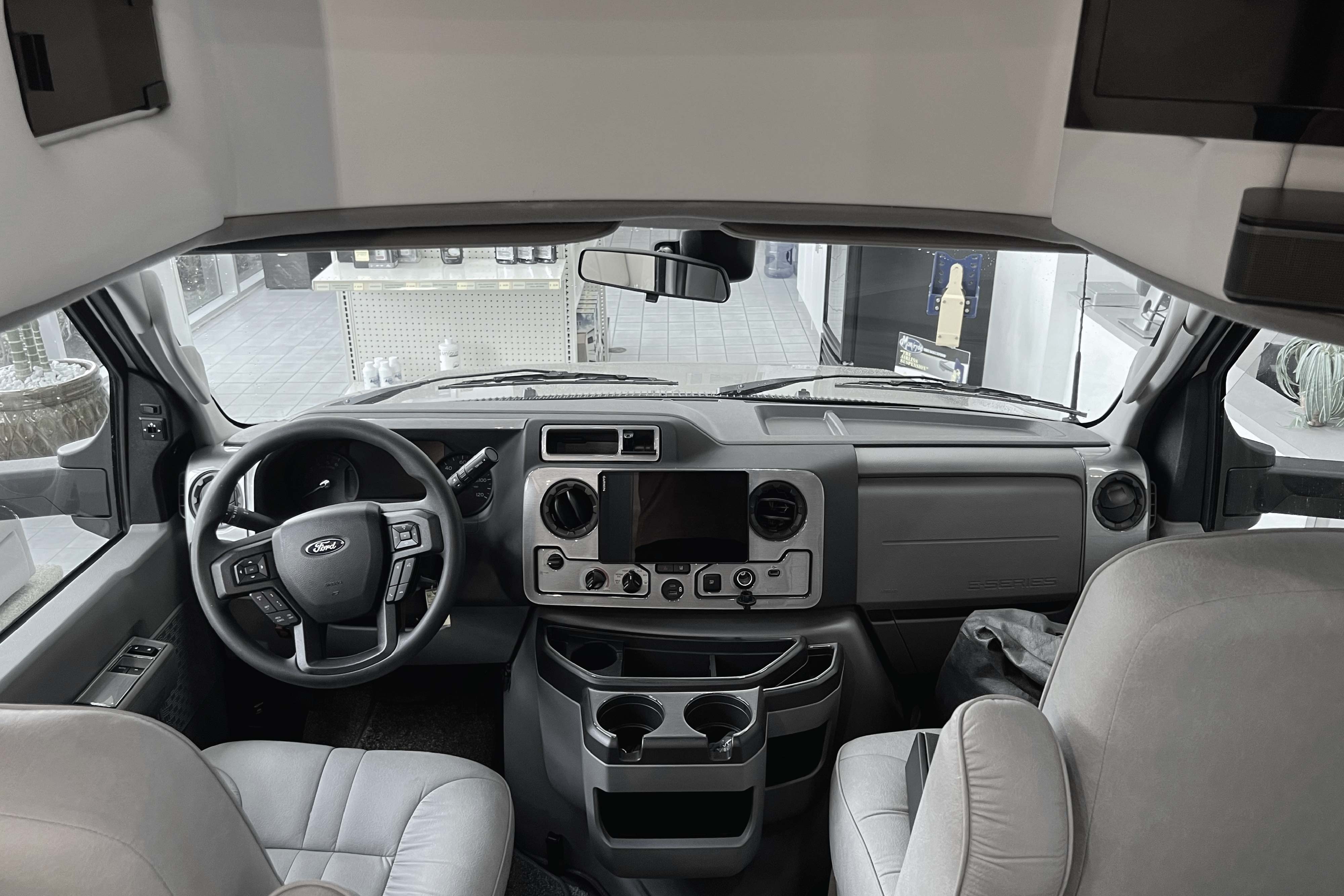

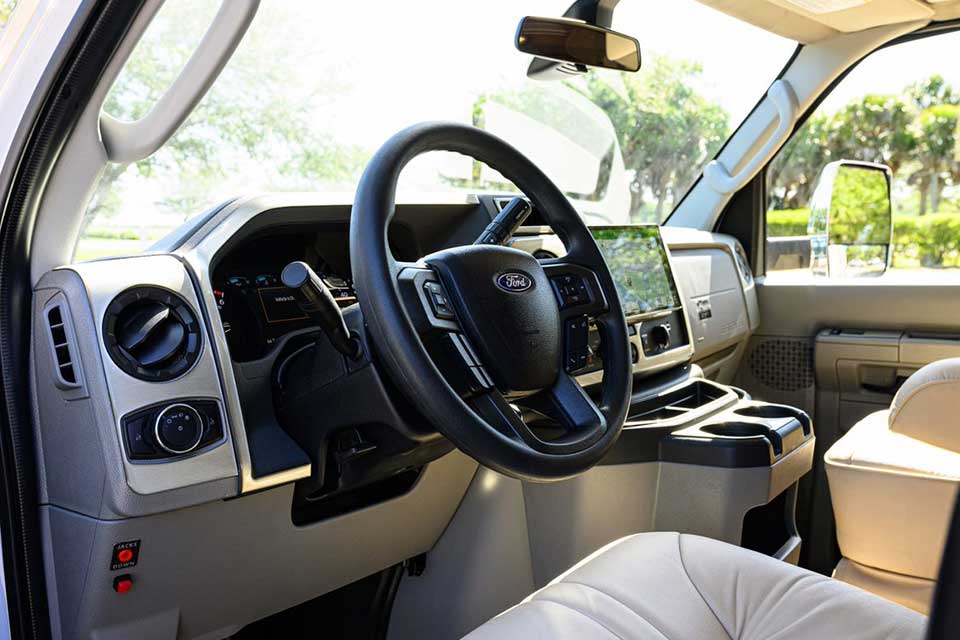

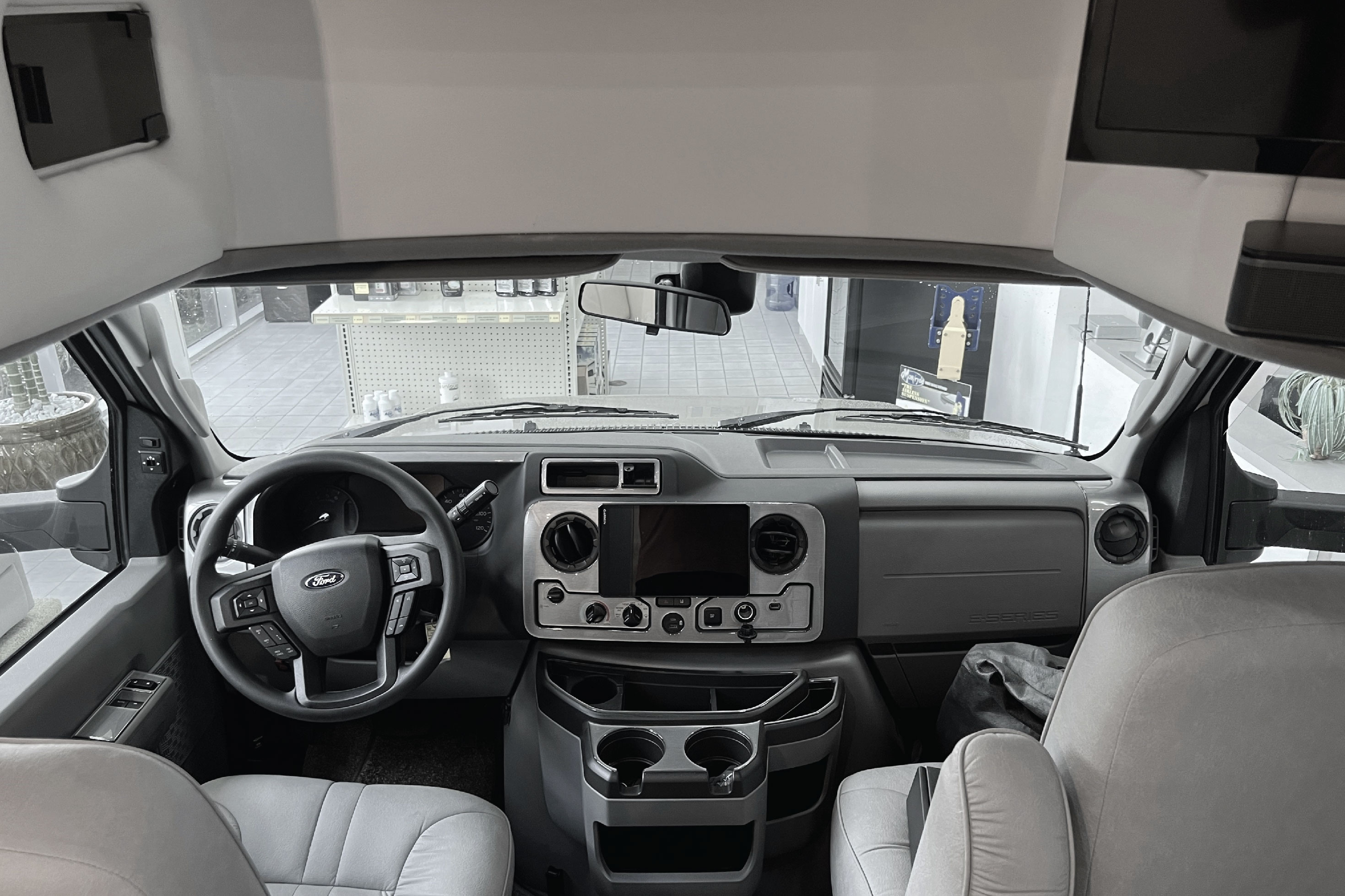

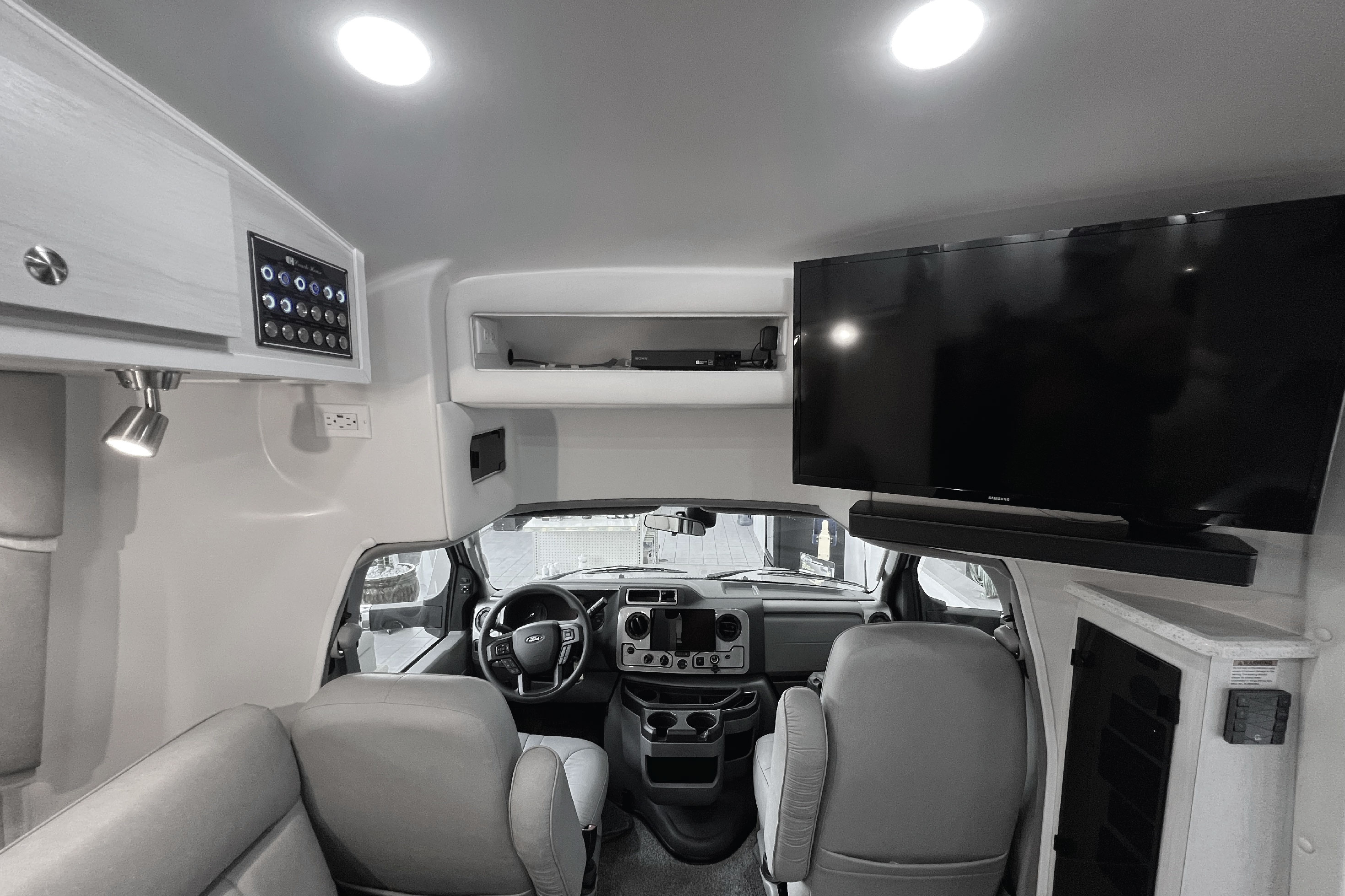

Platinum 220 Interior Front View

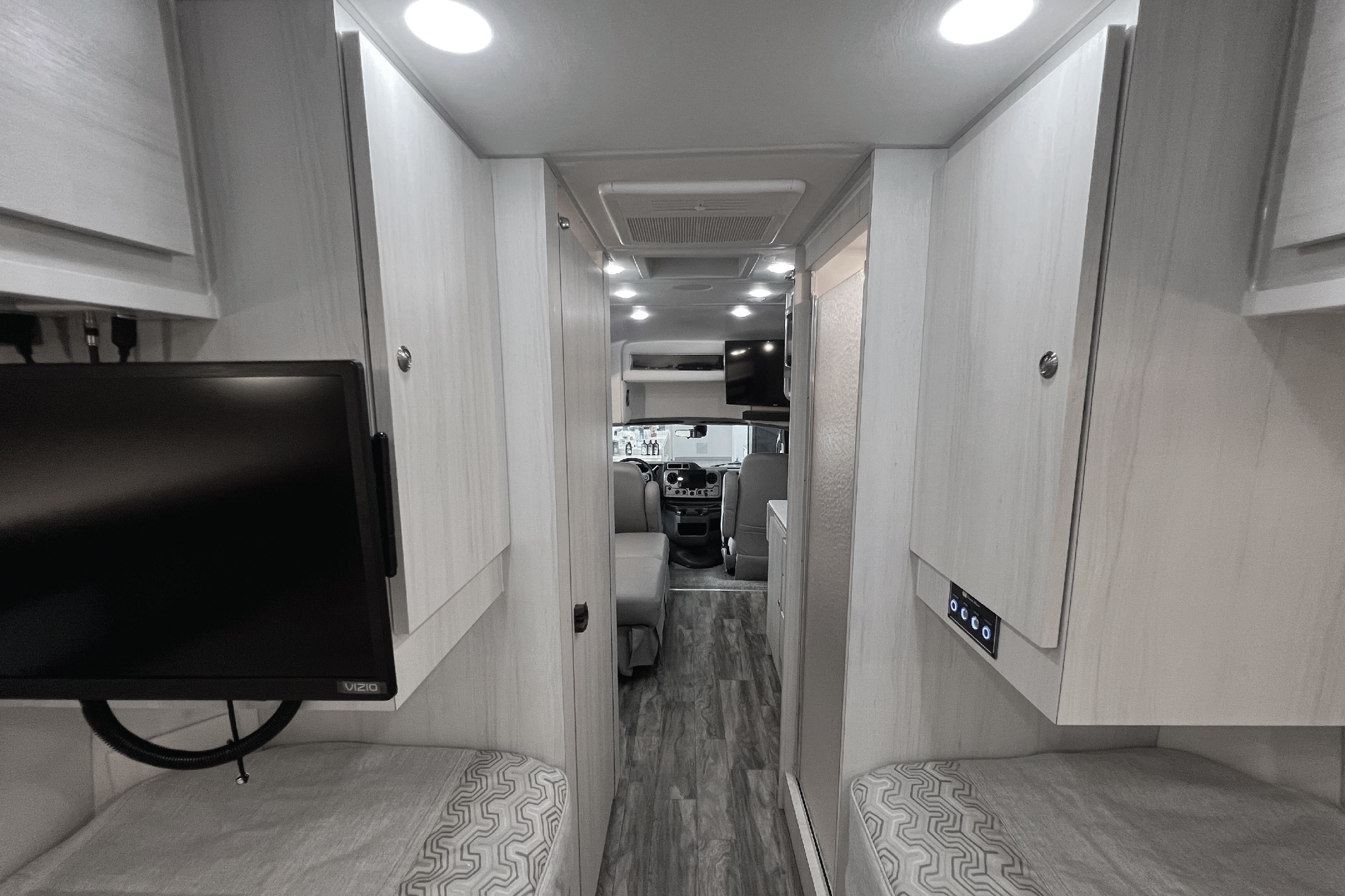

Platinum 220 Interior Twin Rear View
Platinum 220 Interior Refrigerator

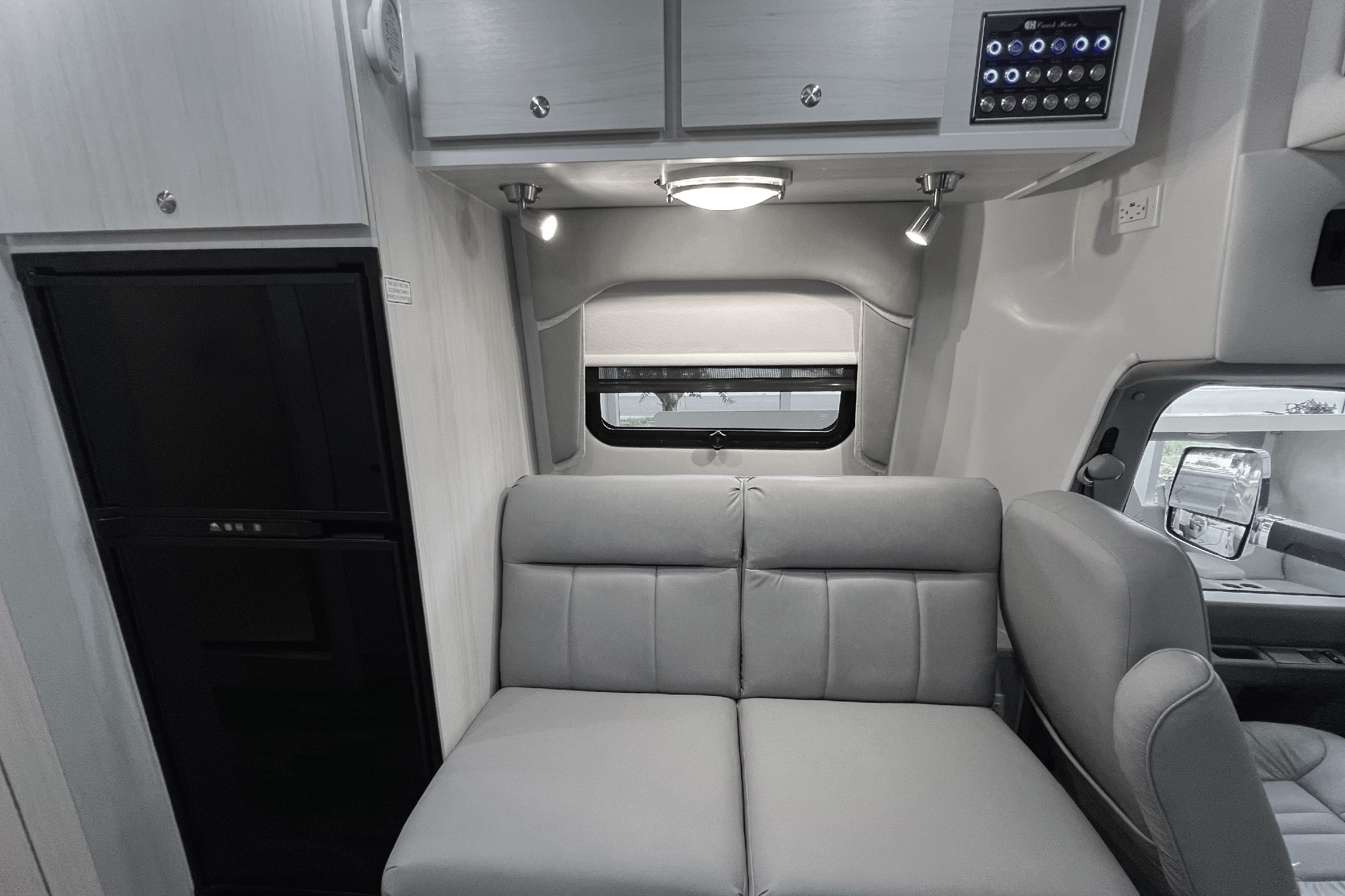

Platinum 220 Interior Loveseat Bed
Platinum 220 Interior Dining Table

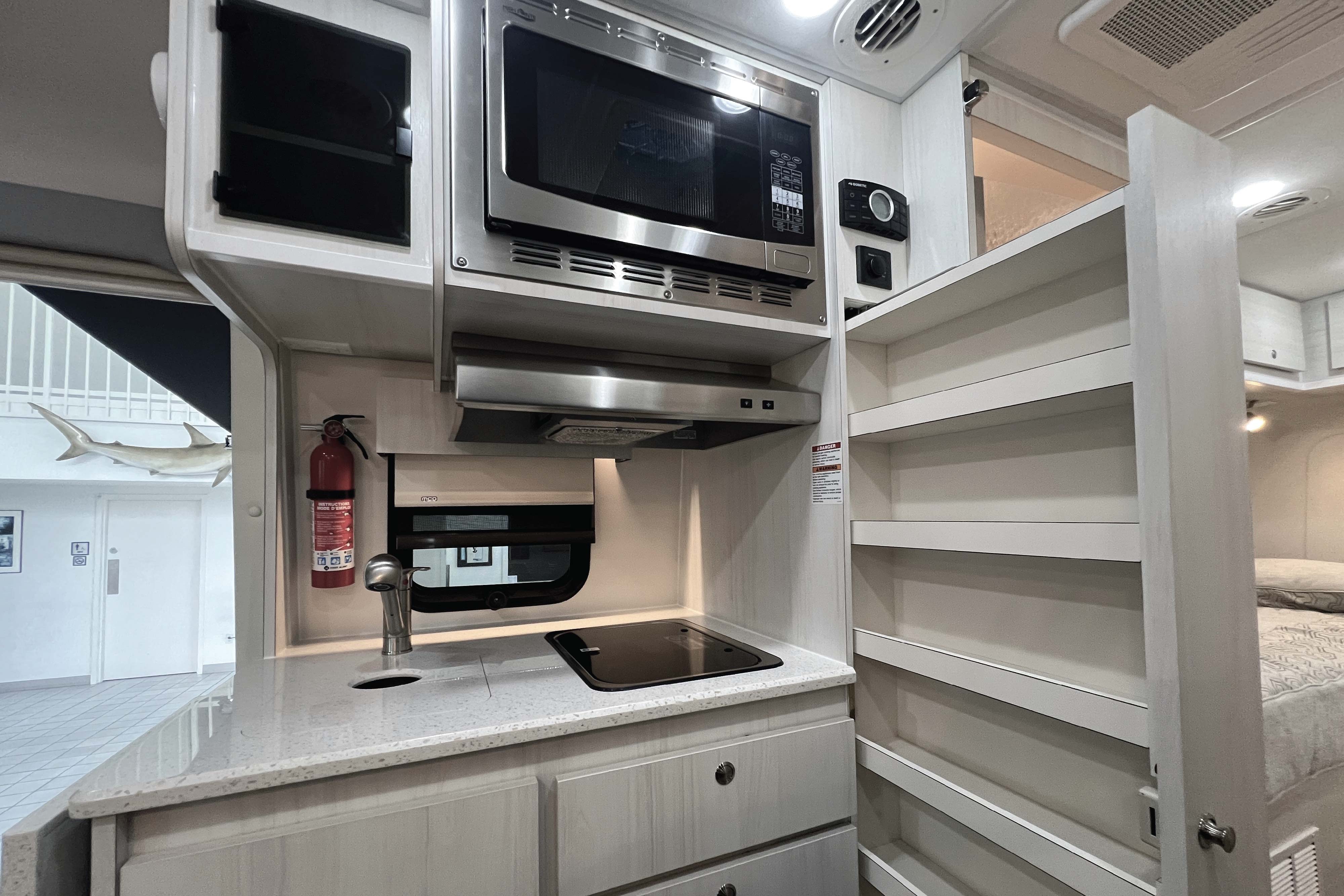

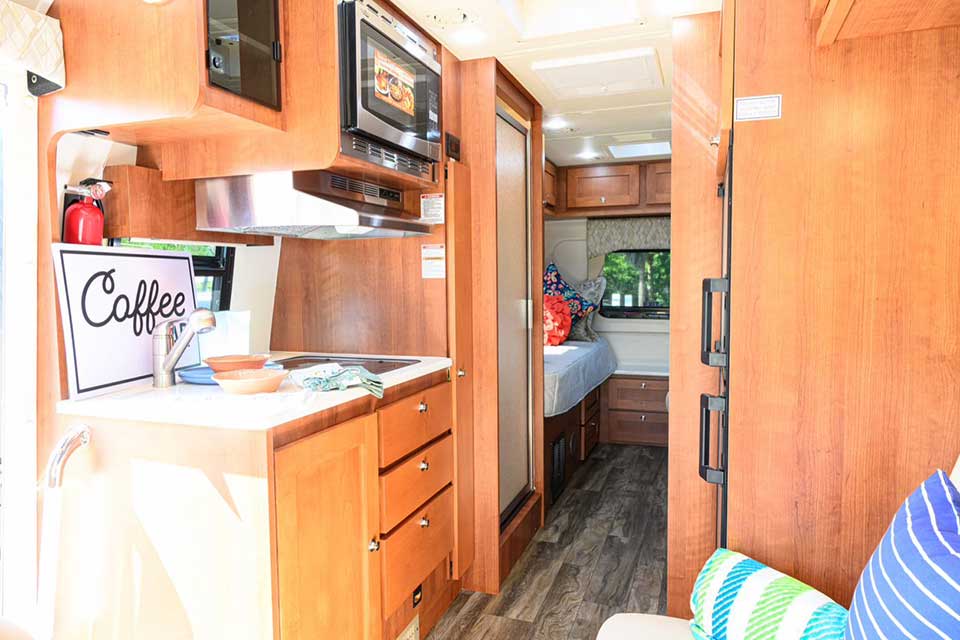

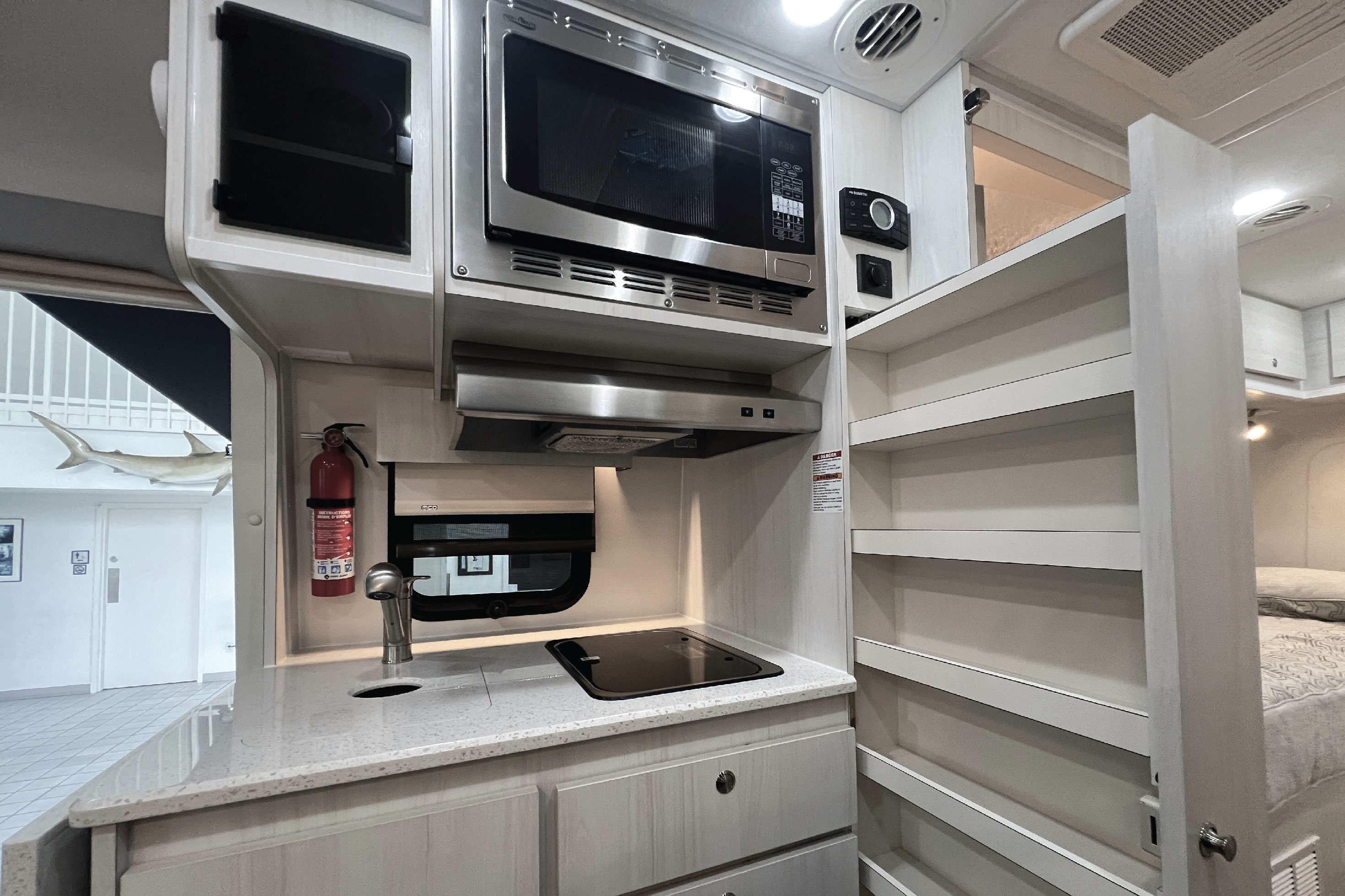

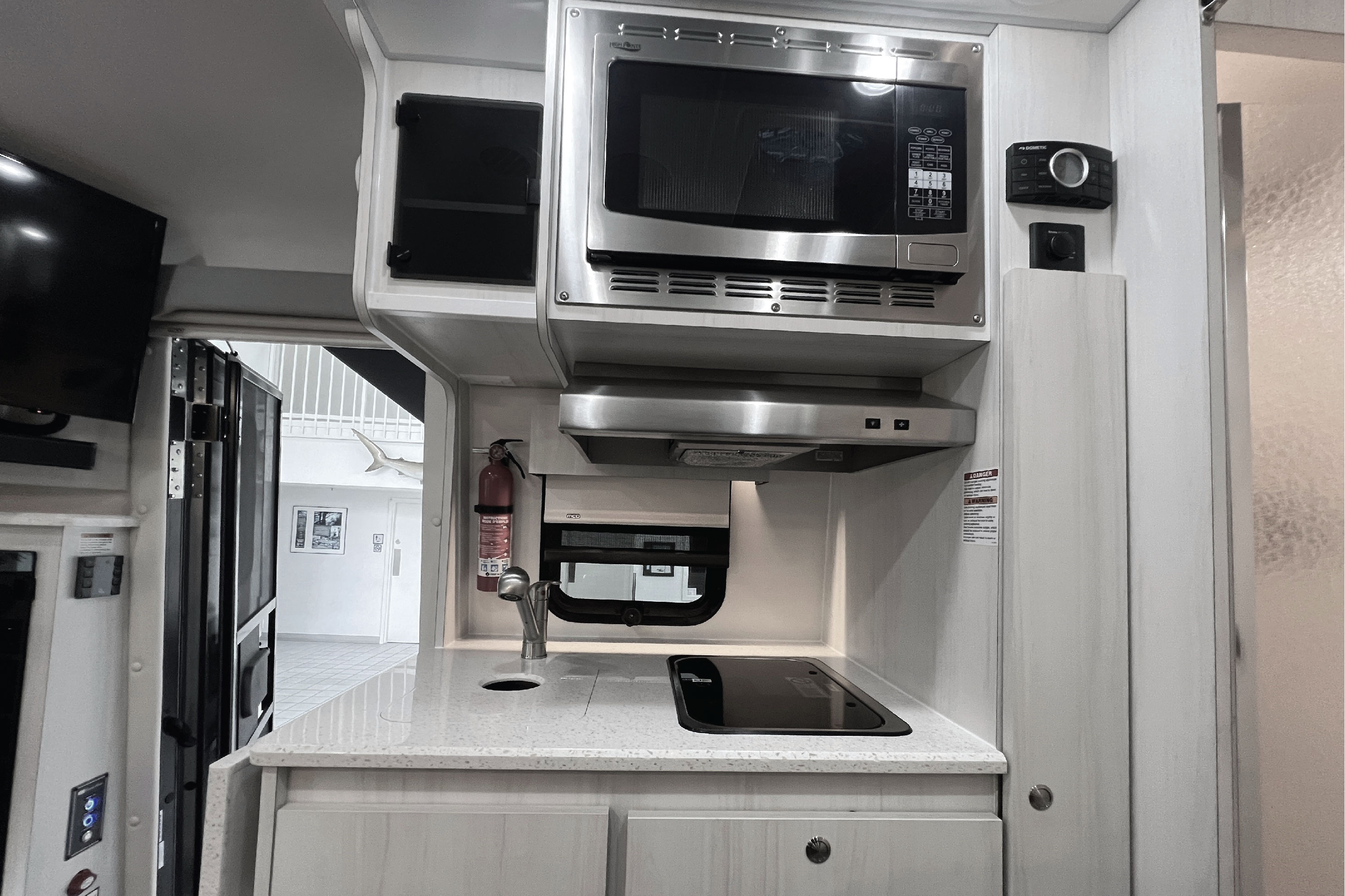

Platinum 220 Interior Sink Stove
Platinum 220 Interior Sink Stove Open

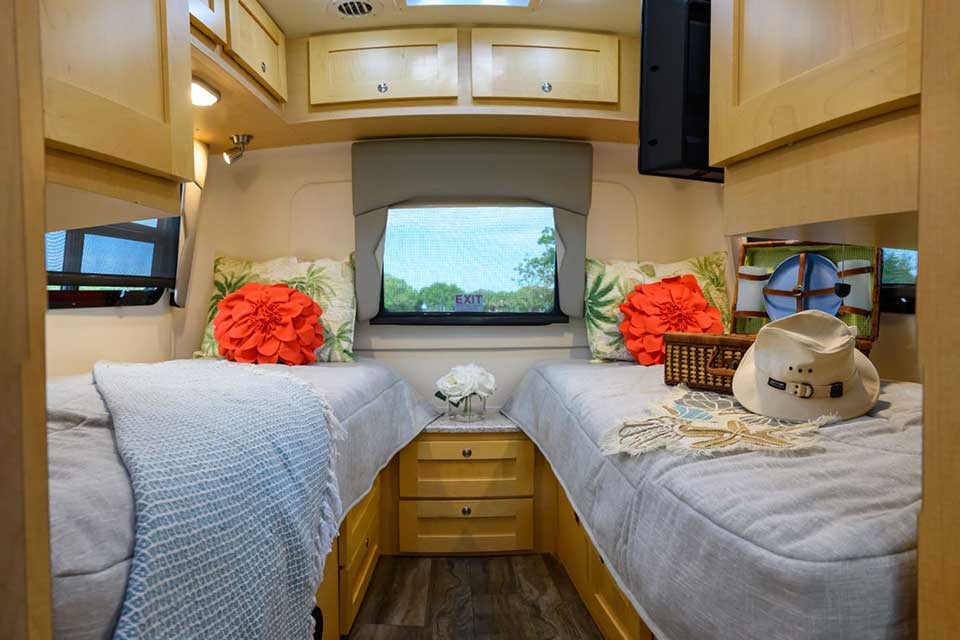

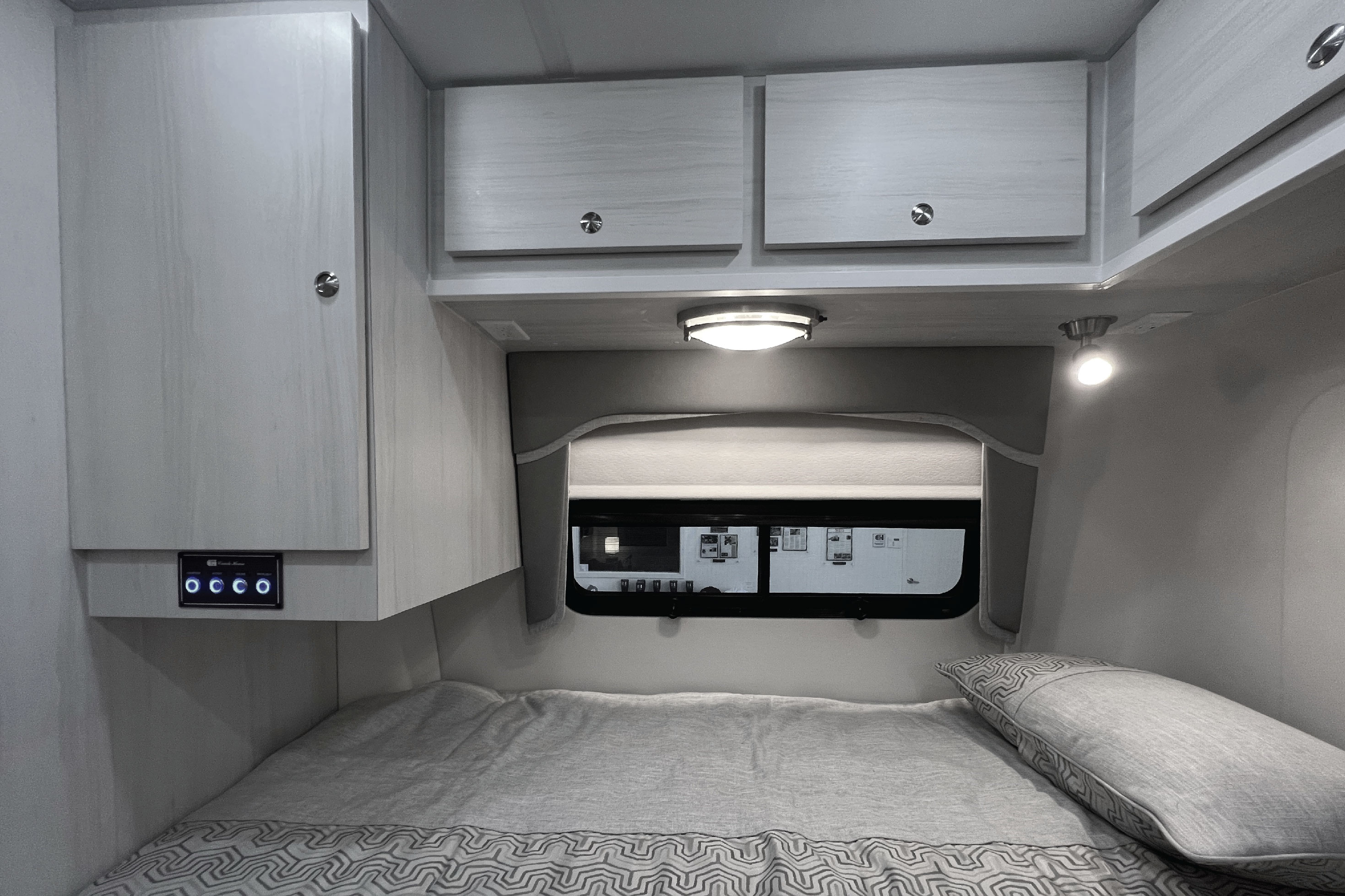

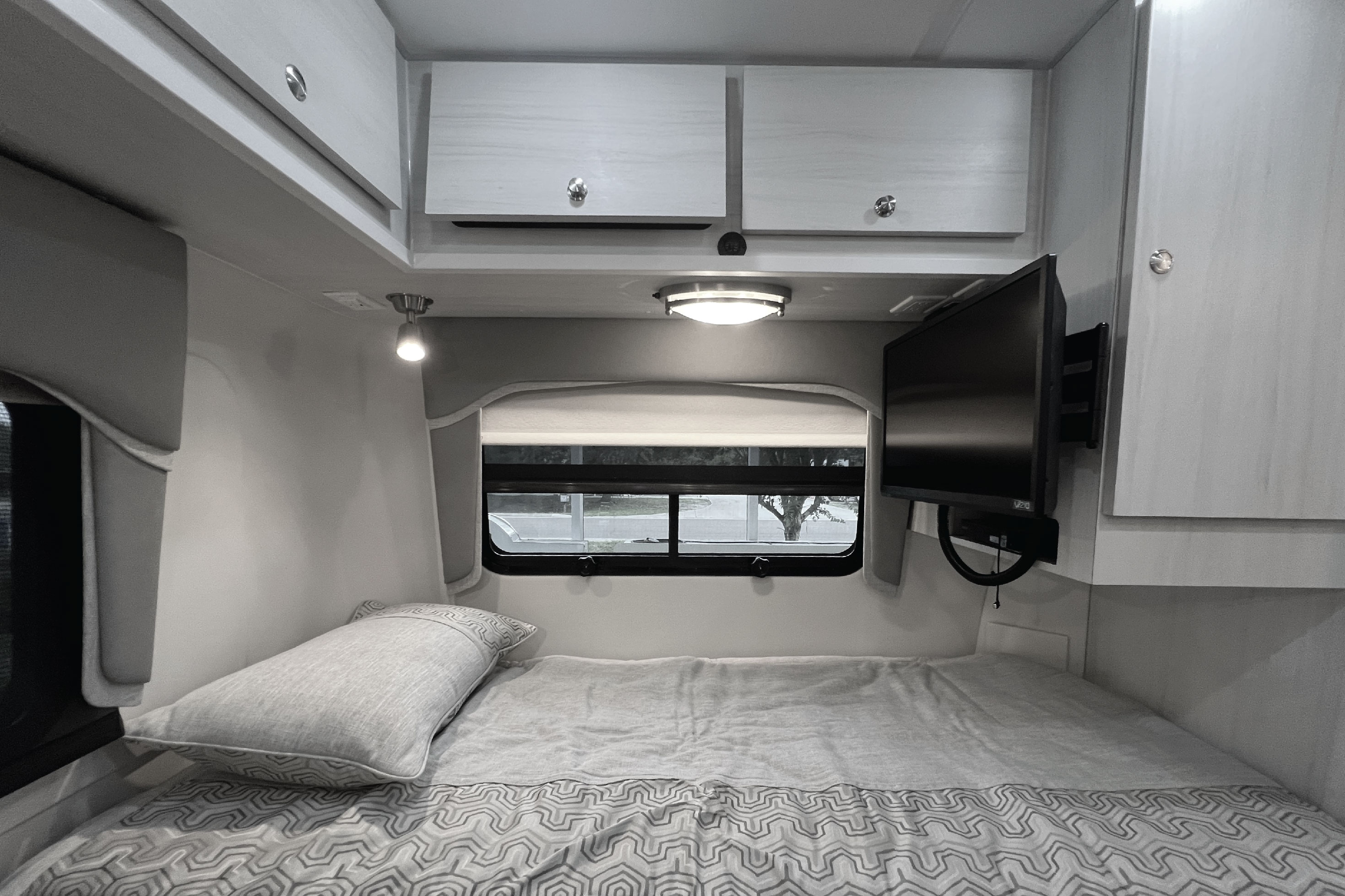

Platinum 220 Interior Twin Beds View

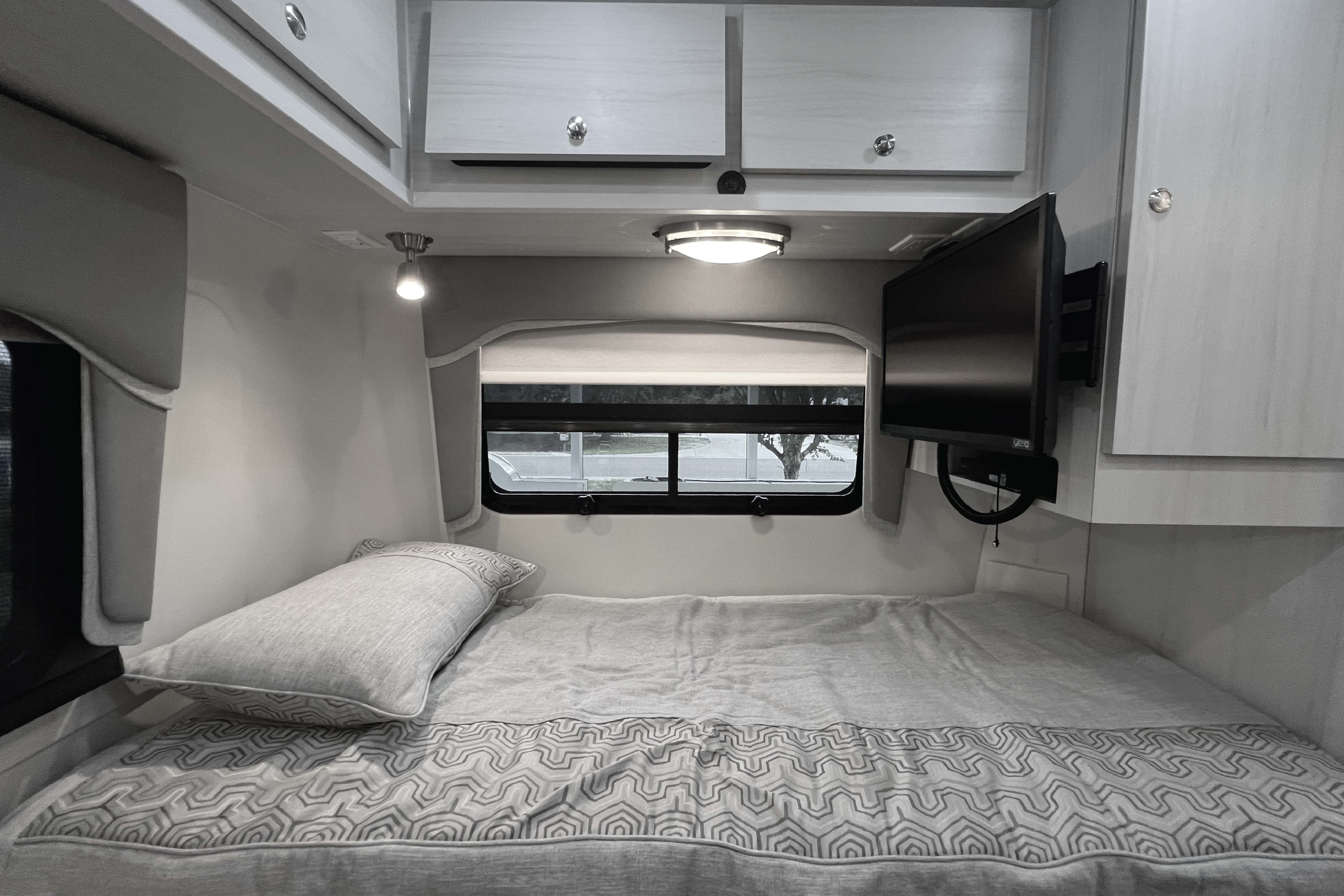

Platinum 220 Interior Twin Beds Close Up
Platinum 220 Exterior Roof Vents

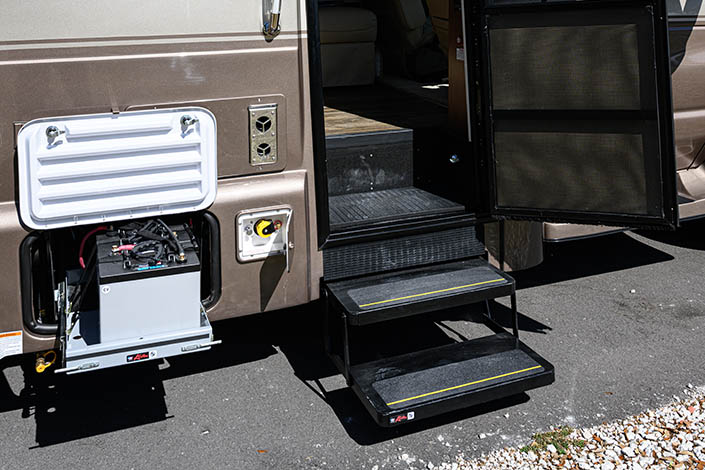

Platinum 220 Exterior Stairs
Platinum 220 Exterior Generator
Platinum 220 Exterior Batteries Storage

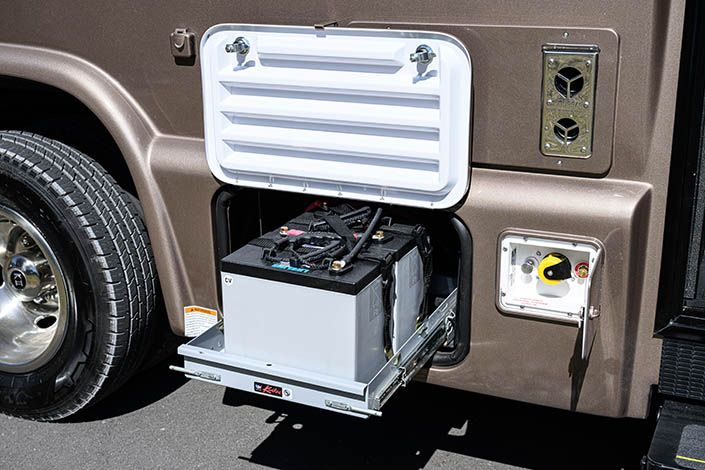

Platinum 220 Exterior Batteries Storage Open
Platinum 220 Exterior Storage Open
Platinum 220 Exterior Water Tank
Platinum 220 Exterior Water Tank Open
Platinum 220 Exterior Auxiliary Shower
Platinum 220 Exterior Auxiliary Shower Open

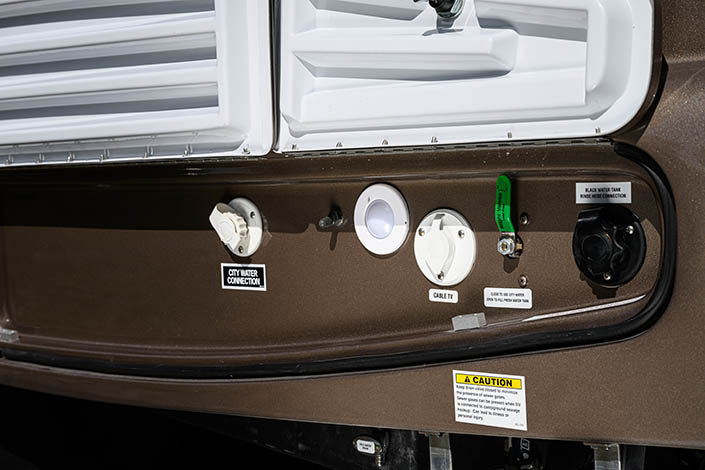

Platinum 220 Exterior Outlet Open
Platinum 220 Exterior Tanks Access
Platinum 220 Exterior Tanks Access Open
Platinum 220 Exterior Tanks Access Open Closeup
Platinum 220 Exterior Gas Tank

Video Gallery


Platinum 220 Features & Specifications

More Standard Features Than Any Vehicle In Its Class

  • Interior
  • Exterior
  • Heating & Cooling
  • Galley
  • Plumbing
  • Electrical
  • Dimensions
  • Tank Capacity
Cherry, Maple, Teak, Cafe’ or Cypress cabinet colors S
Expansive overhead storage S
Solid-surface counter tops S
32″ flat-panel HD TV w/swing arm S
Blu-Ray DVD player S
MCD day/night shade system S
Front privacy drape S
Premium floor coverings S
6-way power driver’s seat, swivel front passenger seat S
Mirror in bathroom S
Medicine cabinet S

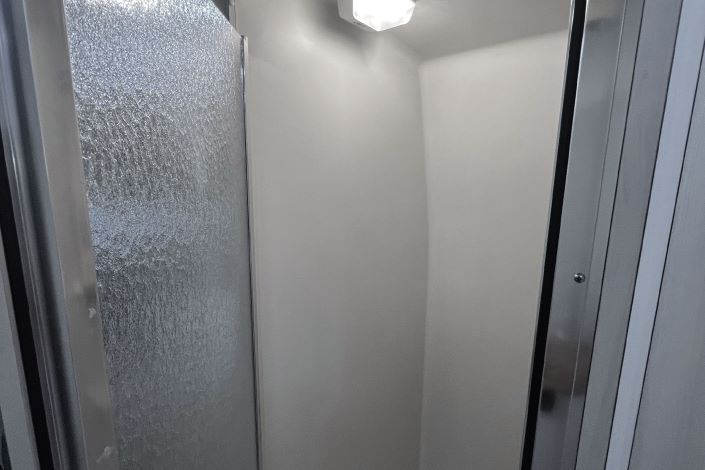

Separate stand-up shower S

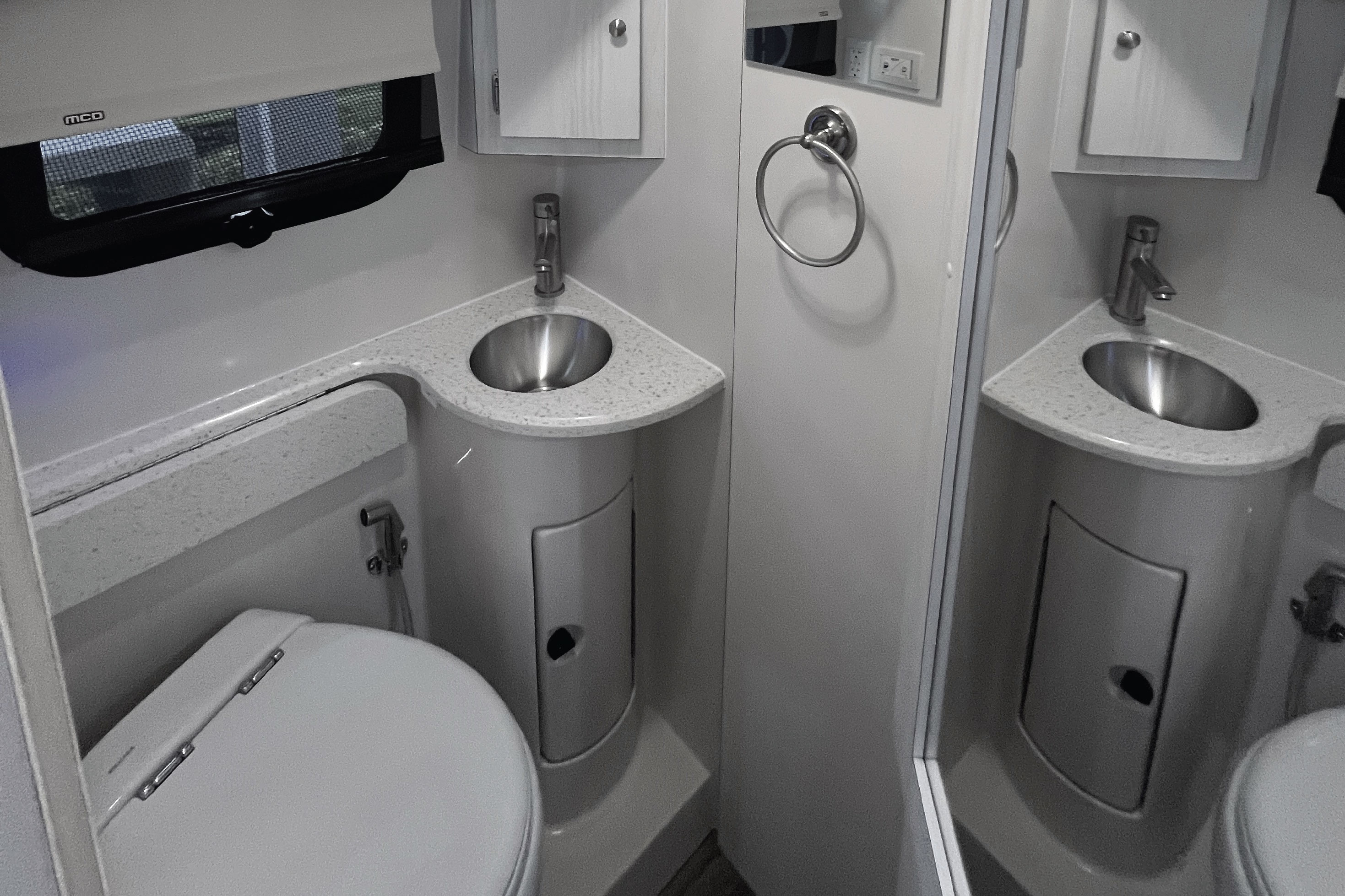

Lavatory sink S
Fire extinguisher S
Premium trim on dashboard S
Sound bar for front TV O
Flat-panel HD TV in bedroom (some models) O
Memory foam mattress(es) O
Patented one-piece hand laid fiberglass body with carbon-fiber reinforcement S
Electric entrance step with light S
HD TV antenna / with Wi-Fi S
Heavy duty trailer hitch S
Exterior fiberglass storage compartments S
1.5″ square-tube aluminum floor frame S
Stainless steel wheel simulators S
Exterior hot and cold shower S
Full size entry door with screen S
Cable TV jack S
Awning windows S
Rear protective skid wheels S
Legless power awning w/LED lights S
Basic two-tone full body paint S
Deluxe Full body paint O
Spare tire and rim S
Alcoa aluminum rims O
15,000 BTU ducted roof air conditioner w/heat pump S
30,000 BTU auto LP gas furnace S
(2) Fan-Tastic roof vents with thermostat and rain sensor S
Heavy duty insulation S
Heated holding tanks O
Two burner LP gas stove S
Stainless steel range hood S
Stainless convection/microwave oven S
Recessed stainless kitchen sink w/cover S
Stainless look 6-cubic foot three-way refrigerator S
Spacious pantry (n/a on some floor plans) S
All-weather interior plumbing S
Concealed large propane tank S
External quick disconnect for LPG grill S
6-gallon electric/engine-assist water heater S
Porcelain flush toilet w/sprayer S
Demand fresh water system S
City water connection S
Universal utility compartment S
110v/12v 45-amp converter/charger S
Firefly multiplex wiring S
Ample 110v outlets (some with USB) S
4.0kw Generator S
Interior and exterior LED lighting S
Carbon monoxide, LP gas, and smoke detectors S
Emergency start switch S
(2) 6-volt auxiliary batteries S
Auxiliary battery disconnect S
25-foot shore power cord S
Exterior 110v outlet S
Porch, compartment, and entry lights S
Navigation system S
Pure sine wave inverter (1,200-watt) S
Color back-up video camera and monitor S
XM/Sirius satellite radio-ready S
Auto start generator module S
In-motion satellite system w/receiver O
190-watt solar battery charger O
2-190 solar battery charger panels O
2-Lithium Ion battery system O
Wheelbase 158″
Overall length 23′ 2″
Overall width 8′ 0″
Overall height including A/C 10′ 5″
Interior headroom 6′ 3″
GVWR (maximum weight of loaded vehicle) 14,500 lbs
GCWR (maximum weight of loaded vehicle plus tow) 22,000 lbs
Rear axle ratio 4.56:1
Interior storage (varies by floor plan) 48 cubic feet
Exterior storage (varies by floor plan) 13.5 cubic feet
Fuel Tank 55 gallons
Fresh water tank 31 gallons
Grey water tank 28 gallons
Black water tank 27 gallons
Propane tank 68 lbs / 15 gallons

Platinum 220 Chassis Features


Ford E-450 Super Duty Chassis

Coach House Ford E-450 Chassis
  • 158-in. wheelbase
  • 7.3-liter V-8 Gas Engine
  • 350 HP with 465 foot pounds of torque
  • 6-speed Automatic Transmission
  • Stability Control
  • Automatic Emergency Braking
  • Distance alert/indication
  • Post impact braking
  • Adaptive cruise control
  • Lane departure warning
  • Driver alert
  • Auto high-beam control
  • Power steering
  • Power windows
  • Power door locks
  • Keyless remote entry
  • Power side mirrors
  • 55-gallon fuel tank
  • 4-wheel anti lock disc brakes
  • Air conditioning
  • Adaptive Cruise control
  • AM/FM stereo
  • Tilt steering wheel
  • Intermittent wipers
  • Front chrome bumper and grill
  • Light and convenience group
  • Driver and passenger airbags
  • Navigation system
  • XM/Sirius ready
  • Color back-up camera

Available Paint & Decor

Full Body Custom Paint On All Models With Designer Fabrics & Surfaces For Interior

Basic Paint Included:
Coach House Basic body paint in shadow Color: Shadow
Coach House Basic body paint in shadow Color: Indigo Blue
Deluxe Paint Additional Charge:
2019-Sterling-paint-job-1 Color: Sterling
Coach House Basic body paint in desert Color: Desert
CoachHouse_BasicPaint_Copper Color: Chestnut
Coach House Deluxe body paint in sunset Color: Sunset
Platinum XS

Coach House Warranty


Peace of Mind – Guaranteed

Our warranty policies can be summed up simply: We stand behind our vehicles, period! Every component of a Platinum motorhome is covered by warranty: The Coach House conversion and the drive-train are covered for three years or 36,000 miles, whichever comes first. The appliances and fixtures are covered by their respective manufacturers for varying terms. Warranty service is available nationwide at the repair facility of your choice, or at the Coach House plant in Nokomis, Florida.
