Platinum 271XL Exterior View
Platinum 271XL Interior Twin Beds
Platinum 271XL Exterior View
Platinum 271XL Interior Recliners

Floor Plans

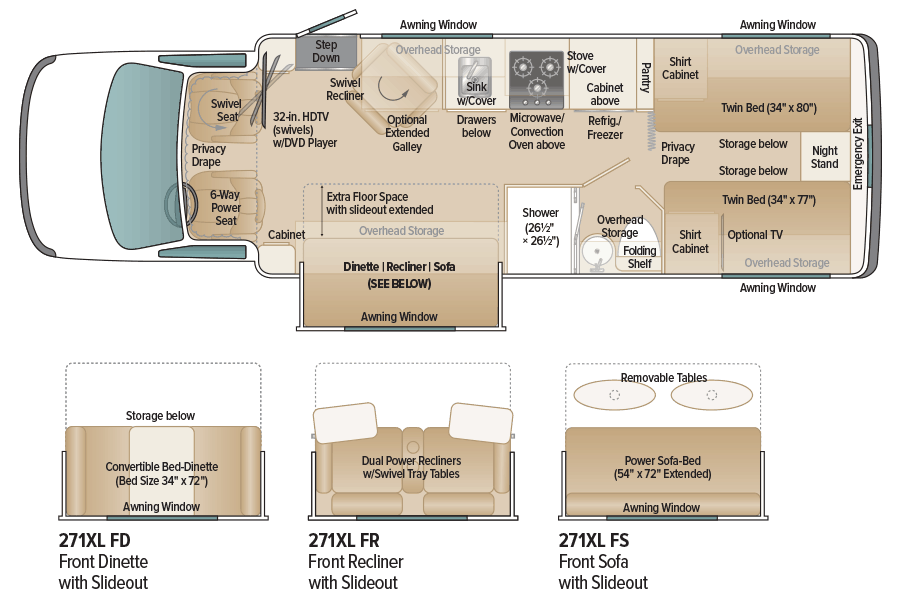

Coach House Platinum 271XL FD, FR, FS Floorplan


Take A Closer Look At The Platinum 271XL

Platinum 271XL Exterior View
Platinum 271XL Exterior View
Platinum 271XL Exterior Alcoa Wheel Closeup
Platinum 271XL Interior Recliners & Cabin

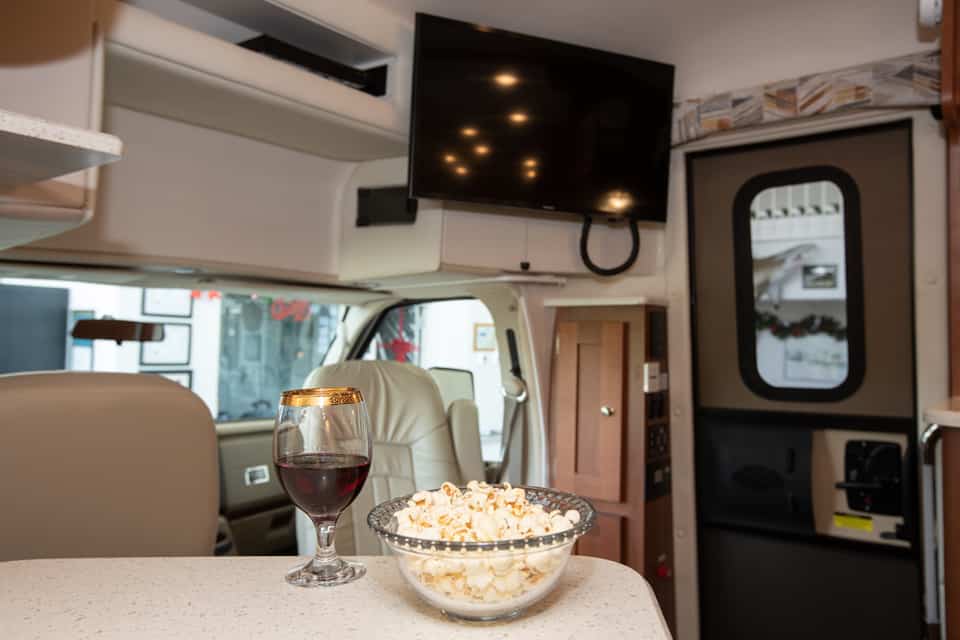

Platinum 271XL Interior Lifestyle View
Platinum 271XL Interior Twin Beds
Platinum 271XL Interior Twin Beds View
Platinum 271XL Interior Galley View
Platinum 271XL Interior Galley View
Platinum 271XL Interior Cabinets Closeup
Platinum 271XL Interior Recliners

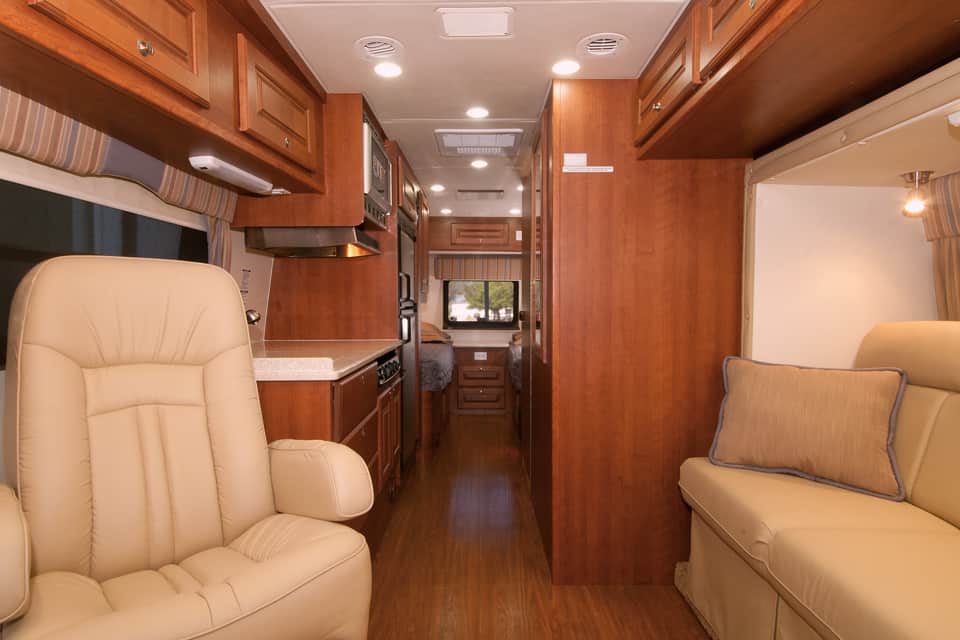

Platinum 271XL Interior Rear View
Platinum 271XL Interior Bedroom Storage Safe
Platinum 271XL Interior Bedroom Storage
Platinum 271XL Exterior View
Platinum 271XL Exterior View
Platinum 271XL Exterior View

Video Gallery

Platinum 271XL Features & Specifications

More Standard Features Than Any Vehicle In Its Class

  • Interior
  • Exterior
  • Heating & Cooling
  • Galley
  • Plumbing
  • Electrical
  • Dimensions
  • Tank Capacity
Cherry, Maple, Teak, Cafe’ or Cypress cabinet colors S
Expansive overhead storage S
Large wardrobe closet S
Solid-surface counter tops S
32″ flat-panel HD TV w/swing arm S
Blu-Ray DVD player S
MCD day/night shade system S
Front privacy drape S
Premium floor coverings S
6-way power driver’s seat, swivel front passenger seat S
Mirror in bathroom S
Medicine cabinet S
Separate stand-up shower S
Lavatory sink S
Fire extinguisher S
Premium trim on dashboard S
Sound bar for front TV O
Flat-panel HD TV in bedroom (some models) O
Memory foam mattress(es) O
Theater-style recliners O
Patented one-piece fiberglass body with carbon-fiber reinforcement S
Electric entrance step with light S
HD TV antenna / with Wi-Fi S
Heavy duty trailer hitch S
Exterior fiberglass storage compartments S
1.5″ square-tube aluminum floor frame S
Stainless steel wheel simulators S
Exterior hot and cold shower S
Full size entry door with screen S
Cable TV jack S
HWH hydraulic slideout S
HWH automatic hydraulic leveling system O
MOR/ryde rear suspension S
Awning windows S
Rear protective skid wheels S
Legless power awning w/LED lights S
Basic two-tone full body paint S
Deluxe full body paint O
Spare tire and rim S
Alcoa aluminum rims O
15,000 BTU ducted roof air conditioner w/heat pump S
30,000 BTU auto LP gas furnace S
(2) Fan-Tastic roof vents with thermostat and rain sensor S
Heavy duty insulation S
Heated holding tanks S
Two or three burner LP gas stove (see floor plans) S
Stainless steel range hood S
Stainless convection/microwave oven S
Recessed stainless kitchen sink w/cover S
Stainless look 6-cubic foot three-way refrigerator S
Spacious pantry (n/a on some floorplans) S
Extended galley (eliminates swivel recliner seat) O
Four-season all-weather interior plumbing S
Concealed large propane tank S
External quick disconnect for LPG grill S
6-gallon electric/engine-assist water heater S
Porcelain flush toilet w/sprayer S
Demand fresh water system S
City water connection S
Universal utility compartment S
110v/12v 45-amp converter/charger S
Firefly multiplex wiring S
Ample 110v outlets (some with USB) S
4.0kw Onan micro-quiet generator S
Interior and exterior LED lighting S
Carbon monoxide, LP gas, and smoke detectors S
Emergency start switch S
(2) 6-volt auxiliary batteries S
Auxiliary battery disconnect S
25-foot shore power cord S
Exterior 110v outlet S
Porch, compartment, and entry lights S
Navigation system S
Pure sine wave inverter (1,200-watt) S
Color back-up video camera and monitor S
XM/Sirius satellite radio-ready S
Auto start generator module (LPG and Gas only) S
In-motion satellite system w/receiver O
190-watt solar battery charger O
2-190 watt solar battery charger panels O
2-Lithium Ion battery system O
Wheelbase 176″
Overall length 26′ 10″
Overall width 8′ 0″
Overall width with slideout(s) extended 10′ 4″
Overall height including A/C 10′ 5″
Interior headroom 6′ 3″
GVWR (maximum weight of loaded vehicle) 14,500 lbs
GCWR (maximum weight of loaded vehicle plus tow) 22,000 lbs
Rear axle ratio 4.56:1
Interior storage (varies by floor plan) 61 cubic feet
Exterior storage (varies by floor plan) 16.5 cubic feet
Fuel Tank 55 gallons
Fresh water tank 37 gallons
Grey water tank 27 gallons
Black water tank 25 gallons
Propane tank 68 lbs / 15 gallons

Platinum 271XL Chassis Features

Ford E-450 Super Duty Chassis

Coach House Ford E-450 Chassis
  • 176-in. wheelbase
  • 7.3 Liter V-8 Gas Engine
  • 6-speed Automatic Transmission
  • 350 HP 465 foot pounds of torque
  • Power steering
  • Power windows
  • Power door locks
  • Keyless remote entry
  • Power side mirrors
  • 55-gallon fuel tank
  • 4-wheel anti lock disc brakes
  • Air conditioning
  • Stability Control
  • Automatic emergency braking
  • Distance alert/indication
  • Post impact braking
  • Lane departure warning
  • Auto high beam control
  • Adaptive cruise control
  • AM/FM stereo
  • Tilt steering wheel
  • Intermittent wipers
  • Front chrome bumper and grill
  • Light and convenience group
  • Driver and passenger airbags
  • Navigation system
  • XM/Sirius ready
  • Color back-up camera

Available Paint & Decor

Full Body Custom Paint On All Models With Designer Fabrics & Surfaces For Interior

Basic Paint Included:
Coach House Basic body paint in shadow Color: Shadow
Coach House Basic body paint in shadow Color: Indigo Blue
Deluxe Paint Additional Charge:
2019-Sterling-paint-job-1 Color: Sterling
Coach House Basic body paint in desert Color: Desert
CoachHouse_BasicPaint_Copper Color: Chestnut
Coach House Deluxe body paint in sunset Color: Sunset
Platinum XS

Coach House Warranty

Peace of Mind – Guaranteed

Our warranty policies can be summed up simply: We stand behind our vehicles, period! Every component of a Platinum motorhome is covered by warranty: The Coach House conversion and the drive-train are covered for three years or 36,000 miles, whichever comes first. The appliances and fixtures are covered by their respective manufacturers for varying terms. Warranty service is available nationwide at the repair facility of your choice, or at the Coach House plant in Nokomis, Florida.
