NEW 2024 Coach House RV Specifications

INTERIOR	220	261-IV	271-IV	272-IV	240	241XL	250	V24
Cherry, Maple, Teak, Cafe’ or Cypress	S	S	S	S	S	S	S	S
Large overhead and wardrobe storage	S	S	S	S	S	S	S	S
Solid-surface counter tops	S	S	S	S	S	S	S	S
Flat-panel HD TV w/swing arm (sizes vary)	S	S	S	S	S	S	S	S
Blu-Ray DVD player	S	S	S	S	S	S	S	S
MCD day/night shade system	S	S	S	S	S	S	S	S
Premium floors	S	S	S	S	S	S	S	S

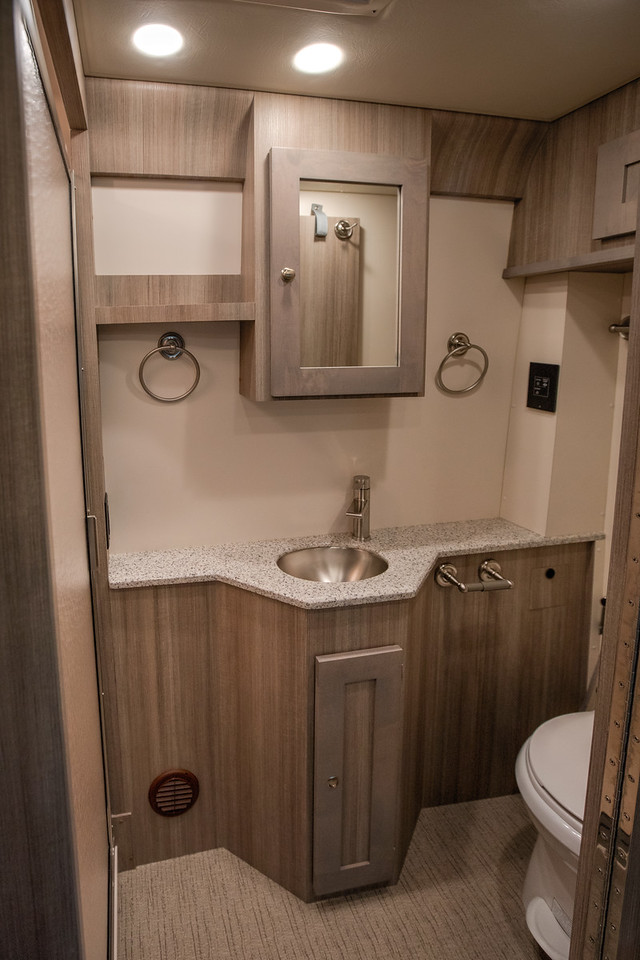

Medicine cabinet	S	S	S	S	S	S	S	S
Separate stand-up shower	S	S	S	S	S	S	S	S

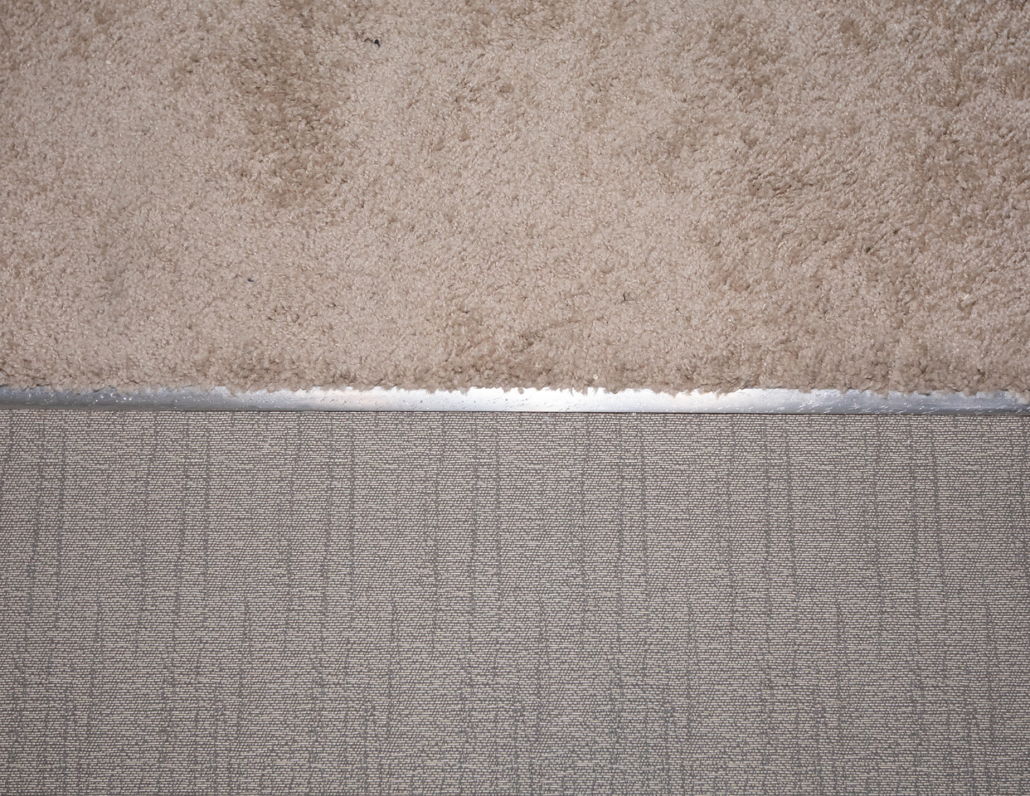

Textured flooring	O	O	O	O	O	O	O	O
Hybrid Mattresses	S	S	S	S	S	S	S	S
Sound bar for front TV	O	O	O	O	O	O	O	-
Flat-panel HD TV in bedroom (some models)	O	O	O	O	O	O	O	S

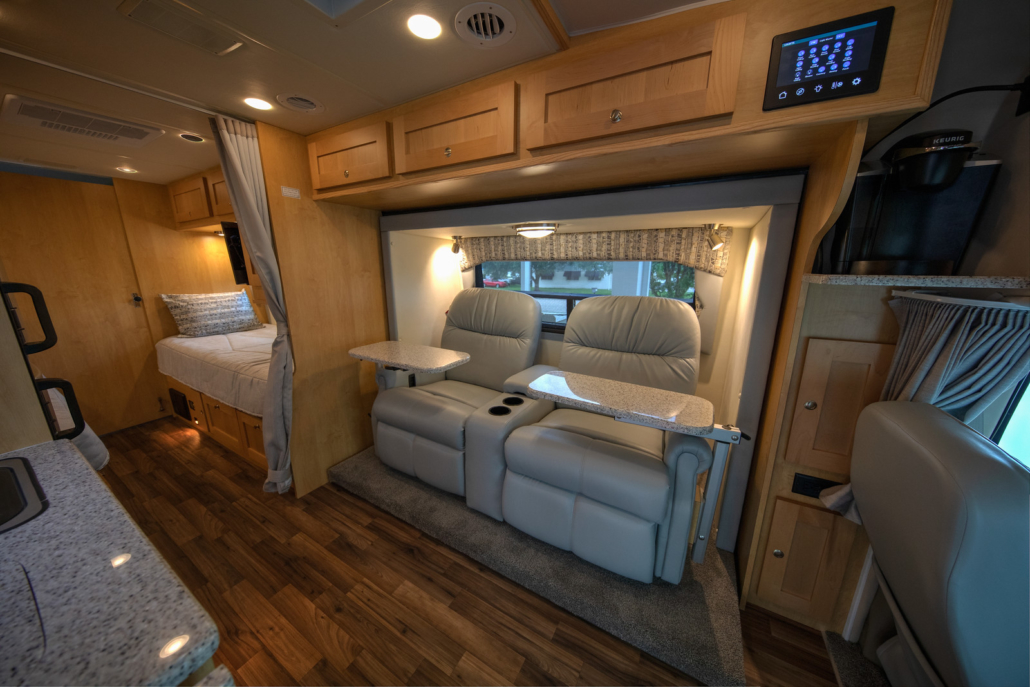

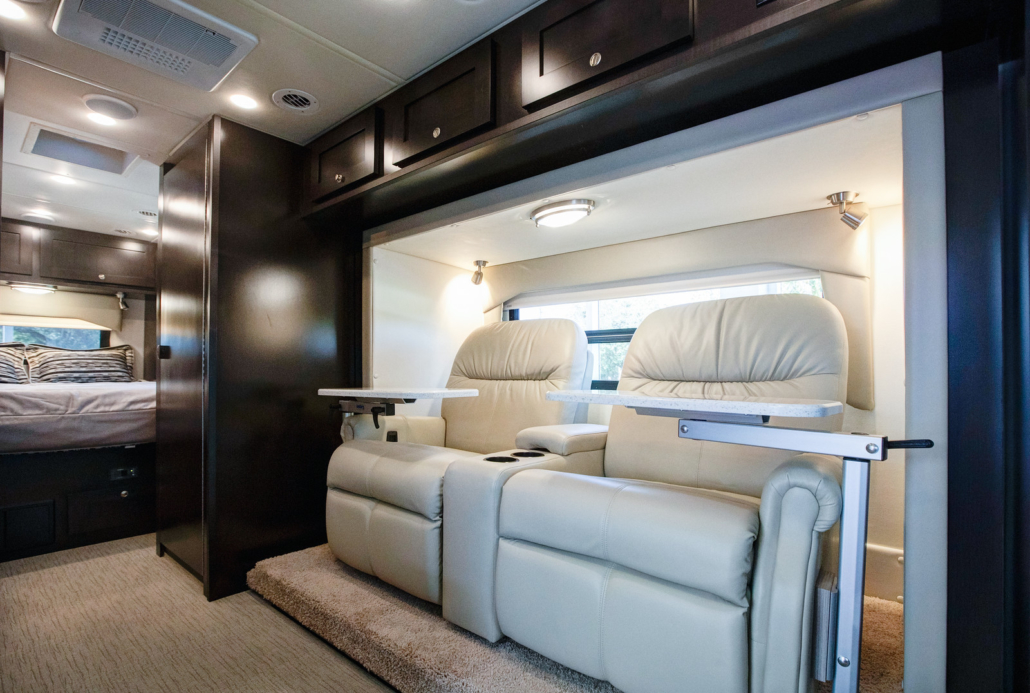

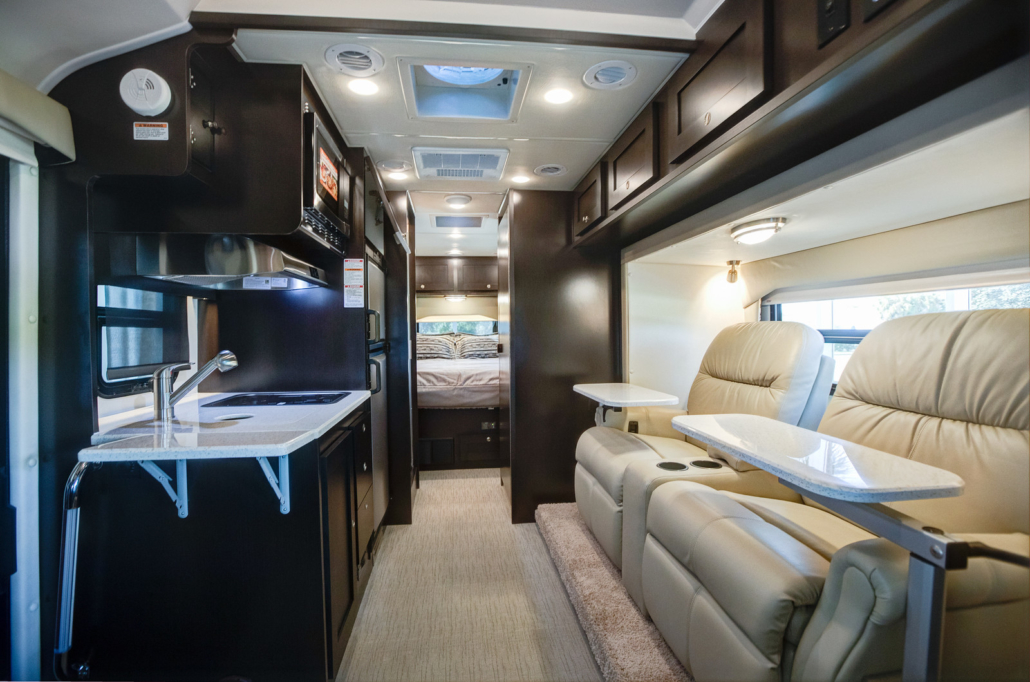

Theater-style recliners	-	O	O	O	-	O	-	-
Side and rear entry screen door package	-	-	-	-	-	-	-	O

EXTERIOR	220	261-IV	271-IV	272-IV	240	241XL	250	V24
Patented one-piece fiberglass body with carbon-fiber reinforcement	S	S	S	S	S	S	S	-
Electric entry step with light	S	S	S	S	S	S	S	-
HD TV antenna / with Wi-Fi	S	S	S	S	S	S	S	S
Heavy duty trailer hitch	S	S	S	S	S	S	S	S
Exterior fiberglass storage compartments	S	S	S	S	S	S	S	S
1.5-inch square-tube aluminum floor frame	S	S	S	S	-	-	S	-
4-inch channel aluminum floor frame	-	-	-	-	S	S	-	-
Stainless steel wheel simulators	S	S	S	S	S	S	-	S
Exterior hot and cold shower	S	S	S	S	S	S	S	S
Full-size heavy duty side entry door with screen	S	S	S	S	S	S	S	-
Cable TV jack	S	S	S	S	S	S	S	S
HWH hydraulic slideout (2 in some models)	-	S	S	S	-	S	-	-
Automatic hydraulic leveling system	O	S	S	S	O	O	O	-
MOR/ryde rear suspension	-	S	S	S	-	-	-	-
Frameless jalousie windows	S	S	S	S	S	S	S	S
Rear protective skid wheels	S	S	S	S	S	S	S	S
Legless power awning w/ LED lights	S	S	S	S	S	S	S	S
Basic two-tone full-body paint	S	S	S	S	S	S	S	-
Safety-Plus	O	S	S	S	-	-	-	-
Alcoa aluminum rims	O	O	O	O	O	O	-	O
Full-body paint (Deluxe)	O	O	O	O	O	O	O	-

HEATING/COOLING	220	261-IV	271-IV	272-IV	240	241XL	250	V24
15,000-Btu ducted roof air conditioner w/ heat pump	S	S	S	S	S	S	S	S
30,000-Btu auto LP gas furnace (19,000 BTU Arriva)	S	S	S	S	S	S	S	S
Two power roof vents with covers	S	S	S	S	S	S	S	S(1)
Heavy-duty insulation	S	S	S	S	S	S	S	S
Heated holding tanks	S	S	S	S	S	S	S	S

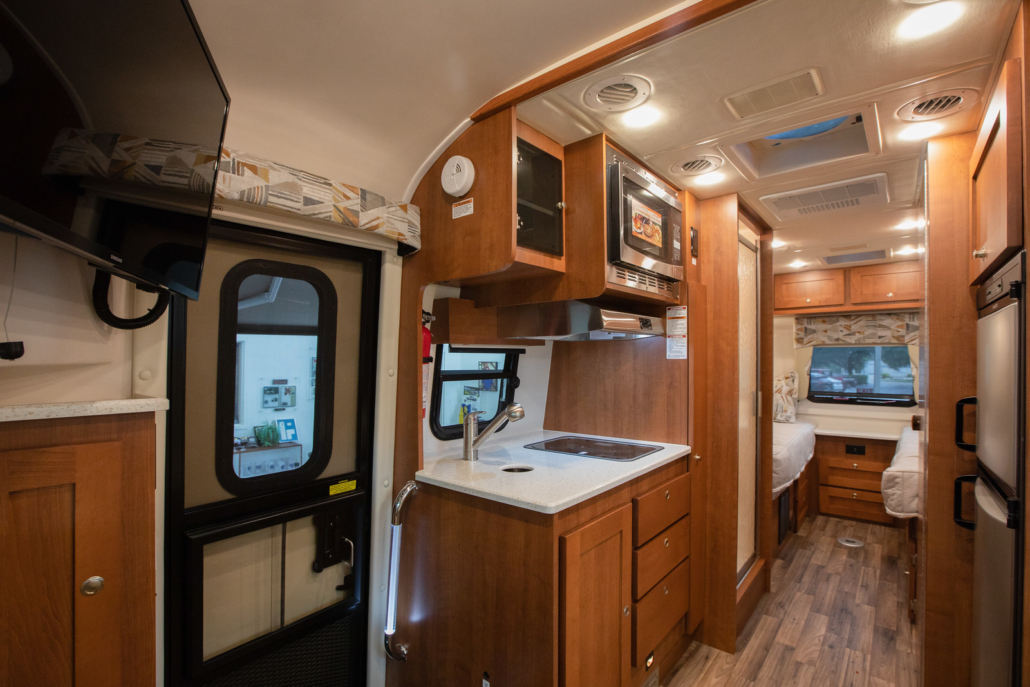

GALLEY	220	261-IV	271-IV	272-IV	240	241XL	250	V24
Two or three burner LP gas stove (see floor plans)	S	S	S	S	S	S	S	S
Stainless steel range hood	S	S	S	S	S	S	S	-
Stainless convection/microwave oven	S	S	S	S	S	S	S	S
Recessed stainless kitchen sink w/cover	S	S	S	S	S	S	S	S
2-way AC/LPG absorption refrigerator	O	O	O	O	O	O	O	O
2-way AC/DC compressor refrigerator	O	O	O	O	O	O	O	O
Spacious pantry (n/a on some floorplans)	S	S	S	S	S	-	S	S

PLUMBING	220	261-IV	271-IV	272-IV	240	241XL	250	V24
4 Season all-weather interior plumbing	S	S	S	S	S	S	S	S
Large propane tank	S	S	S	S	S	S	S	S
External quick disconnect for LPG grill	S	S	S	S	S	S	S	S
On-demand propane water heater	S	S	S	S	S	S	S	S

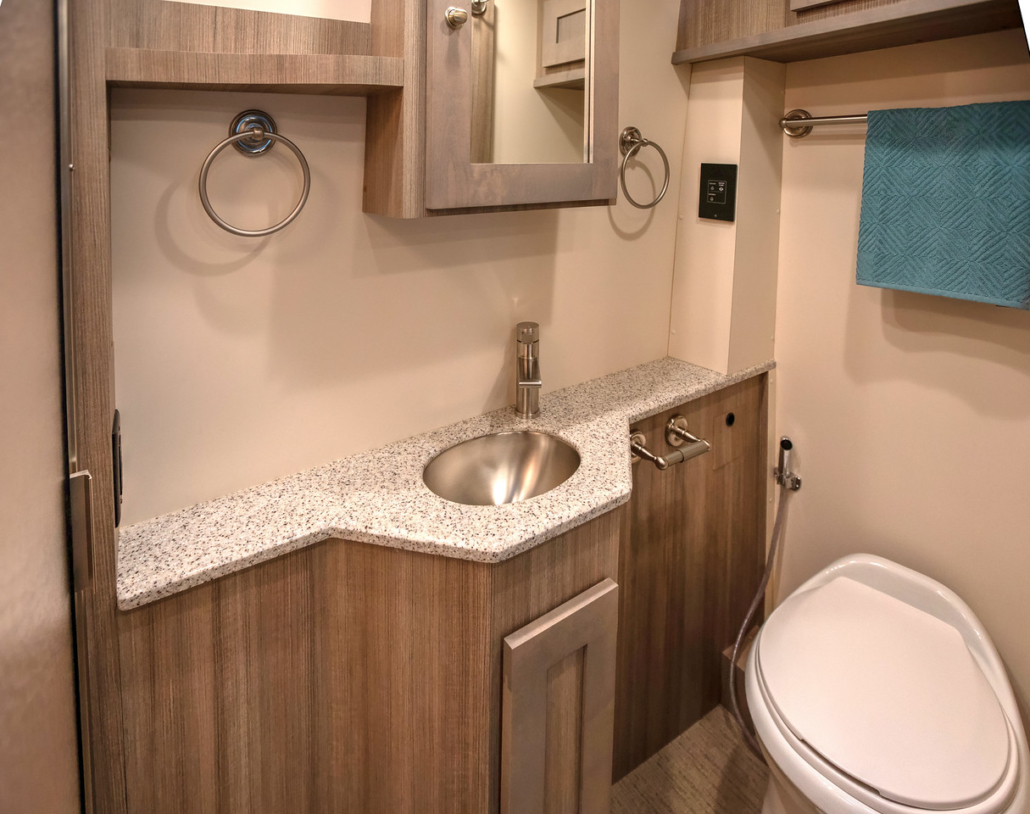

Porcelain flush toilet w/ sprayer	S	S	S	S	S	S	S	S
Demand fresh water system	S	S	S	S	S	S	S	S
City water connection	S	S	S	S	S	S	S	S
Black Water Flush	S	S	S	S	S	S	S	S
Universal utility compartment	S	S	S	S	S	S	S	S

ELECTRICAL	220	261-IV	271-IV	272-IV	240	241XL	250	V24
110v/12v 45-amp converter	S	S	S	S	S	S	S	S
Ample 110v outlets (some with USB)	S	S	S	S	S	S	S	S
4.0kw generator	S	S	S	S	-	-	S	-
3.6kw LPG generator	-	-	-	-	S	S	-	S
Interior and exterior LED lighting	S	S	S	S	S	S	S	S
Carbon monoxide, LP gas, and smoke detectors	S	S	S	S	S	S	S	S
Emergency start switch	S	S	S	S	S	S	S	S
Lithium Ion Battery System	S	S	S	S	S	S	S	S
Auxiliary battery disconnect	S	S	S	S	S	S	S	S
25-foot shore power cord	S	S	S	S	S	S	S	S
Exterior 110v outlet	S	S	S	S	S	S	S	S
Porch, compartment, and entry lights	S	S	S	S	S	S	S	S
Navigation system	S	S	S	S	S	S	S	S
2000 Watt pure sine wave inverter	S	S	S	S	S	S	S	S
Color back-up video camera and monitor	S	S	S	S	S	S	S	S
XM/Sirius satellite radio-ready	S	S	S	S	S	S	S	S
Auto start generator	S	S	S	S	S	S	S	S
200-watt solar battery charger	S	S	S	S	S	S	S	S
Analog switching with backlight panel	S	S	S	S	S	S	S	S
1 additional 200 watt solar battery charger	-	O	O	O	O	O	O	-
In-motion satellite system with receiver (Dish or Direct)	O	O	O	O	O	O	O	O

DIMENSIONS	220	261-IV	271-IV	272-IV	240	241XL	250	V24
Wheelbase	158″	176″	176″	176″	170″	170″	178″	170″
Overall length	23′ 2″	27′ 8″	27′ 8″	27′ 8″	25′ 9″	25′ 9″	25′ 6″	24′ 2″
Overall width	8′ 0″	8′ 0″	8′ 0″	8′ 0″	8′ 0″	8′ 0″	8′ 0″	6′ 6.5″
Overall width with slide-out(s) extended	-	10′ 4″	10′ 4″	12′ 5″	-	10'	-	-
Overall height including A/C	10′ 5″	10′ 7″	10′ 7″	10′ 7″	10′ 7″	10′ 7″	10′ 5″	9′ 7″
Interior headroom	6′ 3″	6′ 6″	6′ 6″	6′ 6″	6′ 4″	6′ 4″	6′ 4″	6′ 2″
GVWR (maximum weight of loaded vehicle) (pounds)	14,500	14,500	14,500	14,500	11,030	11,030	11,000
GCWR (maximum weight of loaded vehicle plus tow) (pounds)	22,000	22,000	22,000	22,000	15,250	15,250	15,000	15,250
Rear axle ratio	4.56:1	4.56:1	4.56:1	4.56:1	4.18:1	4.18:1	3.73:1	3.92:1
Interior storage (cu. ft.; varies by floor plan)	48	75.4	70.2	71.8	52	52	52	NA
Exterior storage (varies by floor plan)	13.5	29.3	29.3	29.3	22.7	22.7	23	NA

TANK CAPACITY	220	261-IV	271-IV	272-IV	240	241XL	250	V24
Fuel Tank (gallons)	55	55	55	55	26.4	26.4	25	26.4
Fresh water tank (gallons)	31	40	40	40	31	31	31	31
Grey water tank (gallons)	28	27	27	27	28	28	28	20
Black water tank (gallons)	27	25	25	25	25	25	19	13
Propane tank (pounds/gallons)	68/15	68/15	68/15	68/15	68/15	68/15	55/12	55/12
